There are two outbacks in that era. The legacy outback, which is the bigger 4 door legacy wagon. Impreza outback sport, the smaller impreza wagon.

2003-07 impreza should be a safe bet, but other models are the same in the era should work too. It's been a while, I forgot which year compressor I swapped in to replace the 2002 impreza wrx. The electrical connector was different. My 03 had a 1 pin connector. It's 12v to activate the clutch. Cut the connector from the old clutch and put it on the newer unit. Been working fine since 2015

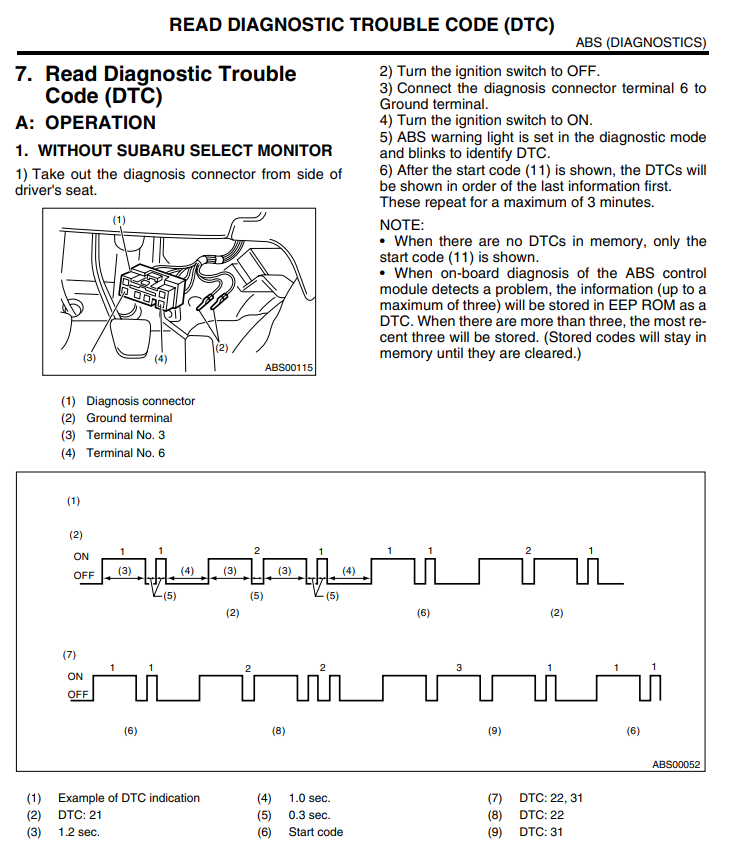

Not sure, I guess it means chassis ground.

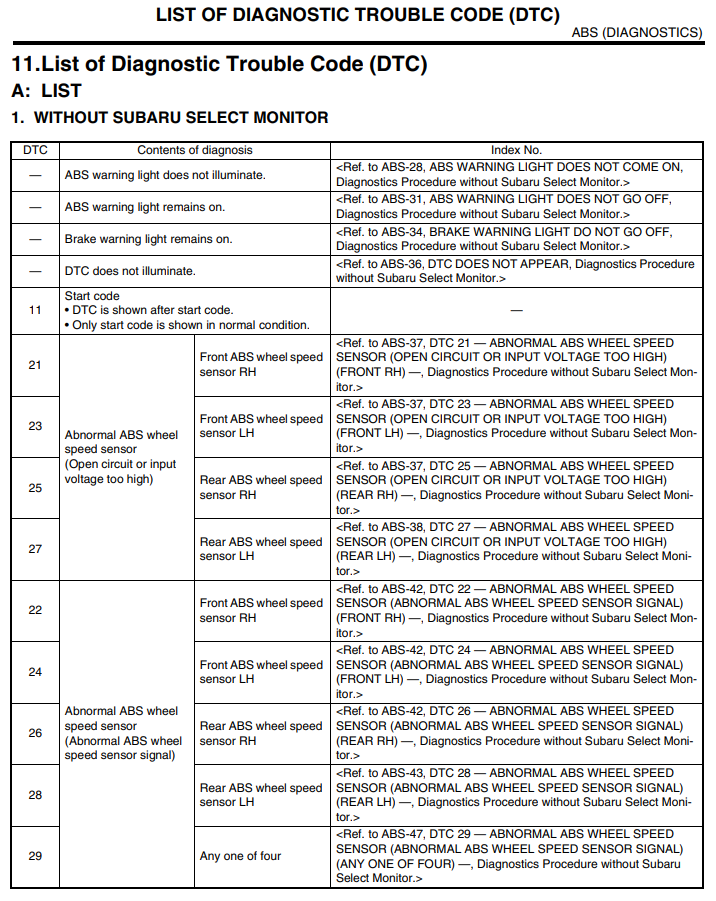

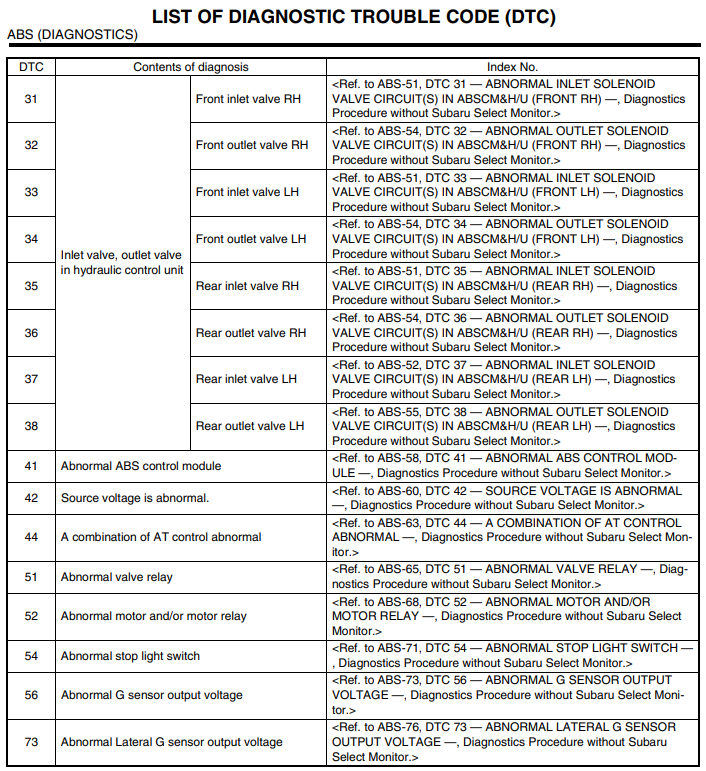

I got the manual from here, it's the 1992 one. https://sl-i.net/FORUM/showthread.php?18087-Subaru-Factory-Service-Manuals-(FSM)-Every-Model-USDM-EU

How was the state of old compressor, did it frag and sent metal down the line? If you still have it around, try dumping out all the old oil. If it's close to black, chances are it's been grinding away and the iron particles have oxidized. If there's moisture and gunk in the oil, it gets extremely thicker when it starts to freeze. It'll coat the walls of the evaporator and not transfer heat from the cabin. The refrigerant stays liquid until it reaches the outside line in the engine bay, then it can finally flash off and that's why frost builds up.

Looking at the TPS, I haven't seen those old square ones first hand, but it looks like you can take apart the cover on those? They are probably just potentiometers. if you can take apart the cover, spray on some electronics contact cleaner. It should work again at least until you can source a replacement.

I'm more astounded you were able to go to a parts store and find all the parts without having to order online.

Though if you're suspecting line leaks somewhere else, do a sanity check. Engine off. Keep pumping the brakes until they're rock hard and hold them. Even if there was air previously, the pedal shouldn't drop after a minute. It only drops if there's a leak.

Pressure bleeders are hit and miss as stated before. It's the newer style reservoirs with a foam float in them. They'll sometimes block the orifice and make things difficult. I've had the motive one before, More hassle than it's worth. Especially cleaning it out after storage. Any remaining brake fluid you have will turn into brown gunk where black pump tube is, maybe it's the rubber bits. I've had good results with a hand pump vacuum. To get a good vacuum seal over the threads, I use thick grease and build a cone around the entire fitting. Since mine is hand operated, I'd pump until there's enough vacuum, open and shut the valve, pump again. The trick is to work the grease into the threads by getting a high vacuum with the bleeder closed, open slightly and close in small increments. Once you're sure the grease has worked in, open just enough to get the fluid flowing while having moderate vacuum. I just buy a big bottle of brake fluid, and slap it on top of the reservoir like a water jug. It was a mityvac kit from 2000's, dunno if they're as good nowadays.

Overheating on idle sounds bad. Get one of those radiator fill kits where you hook a bucket to the top of your radiator cap. With the bucket filled, massage the upper radiator hose to get rid of bubbles. Let the car warm up and spit out the remaining air bubbles. It should be running fully warmed, with radiator fans cycling on and no bubbles. You can force the car into limp mode to get a stable idle if needed. With engine off, key out, unplug the maf. Start the car, it'll be in open loop and it won't rely on any o2 sensors to idle. The idle should be stable as the ecu injects the default fuel amount. If idle is still bad, it's something more basic, fuel, spark, compression. You won't be able to drive in limp mode, it'll be rev limited and probably beep a lot. To reset the ecu back to normal, unhook the battery, hold the brakes for a while. Hook back the maf and start the car.

It sounds like your threads are gone, can you try threading in the bolt without the crank pulley to see if you can find some good threads left? If so, you can get a longer crank bolt to grab those threads with the pulley on. You really want to be able to torque it down to full specs. It's the force of the bolt clamping the pulley down that transfers power. The key alone wasn't designed to bear the torque of both cams, crank pulley, and all the accessories. They key is mainly for alignment of that sprocket, the crank pulley isn't as critical. It looks like the sprocket is still aligned even if the key looks dinged up. If you can find some good threads further down, then just leaving the timing as is and using a longer bolt should be adequate. File the key to get the new crank on flush, it doesn't need to be perfectly aligned.

Yes, the timing belt needs to come off to replace the woodruff key. It's a half moon shape and can't slide out without removing the sprocket completely. You need to address why the bolt doesn't fully tighten first though. If it can't get to at least 90ft-lbs, the key will fail and take along whatever parts associated. It could be bad luck that the previous owner didn't tighten the crank bolt enough, but it also could be stripped threads in the crank since you noted the bolt isn't getting tighter.

It's still the all mechanical one, just unhook the clutch cable and use a zip tie on the lever to lock it on always open mode. Search for disable hill holder for examples.

Does it have a hill holder? Those get gummed up and causes the brakes not to release.

B is right. You could probably trace back where C7 leads to and run off that. It's probably a good idea to figure out what C7 is and measure the voltage. Come to think of it, I've not any experience with newer cars with led gauges. I've been used to the 12v bulbs and assume they'd all be 12v. C7 >> diode + >> diode - >> led + >> led - >> ECM Put a real diode in between to protect the ecu.

I've replaced mine once, it started rattling and cracked again eventually. Seems like the plastic of that specific piece wasn't well made.

Looks like it, fairly sure the ecu sends a ground signal to turn on the light. But to be safe, hook up a multimeter in volt mode, black lead to pin 11, red to 12v. Check engine light is always on when motor isn't spinning and should go away when running.

I have both a 98 with a flip up and a 03 with the cracked dash cover. They don't look interchangeable.

Manuals are here https://sl-i.net/FORUM/showthread.php?18087-Subaru-Factory-Service-Manuals-(FSM)-Every-Model-USDM-EU

It's a coil spring on the base of the pedal. You can see it if you're on your back and shine a light up where the pedal pivot is. They never break. Actually while you're under there, check the entire brake/clutch bracket for any cracks from corrosion. It really sounds like something wrong with the hydraulics, to the point where it can't overcome the pedal assist spring.

The pedal is has a bistable helper spring mechanism. The first half of travel the spring wants to push it back up, when you pass halfway, the spring wants to pull the pedal down. Think of an old school light switch. Could you try pressing the clutch all the way down, then keeping it held down with a 2x4 or something. Check if the slave cyl is holding the fork down after an hour.

If you want to test the new fans, there's two green connectors under the driver side dash. When you connect them together, it throws the car into test mode. It cycles all the relays on and off. You should see the fans go from off, fast, slow. If you see only fast, it's probably a non-oem fan. Unplug the green connectors when you're done.

It's been so long ago, I forgot if it's taped up to the harness or was one of the connectors behind the inner fuse block. It was definitely hidden when I needed it. Remove the lower plastic panel and 2 x 10mm bolts on the metal protector bracket.

Not for subarus but cars in general. I haven't seen a real metal button since maybe vw bug days? They're all plastic.

It sounds like the low temp sensor is triggering. Assuming the compressor is good and there's no blockage in your refrigerant system, next step is check if the evaporator coil clogged with debris. Maybe some leaves got in and is blocking airflow causing the thing to freeze over. If it's making cold air consistently at max fan speed, likely just debris causing the evap to freeze over..
