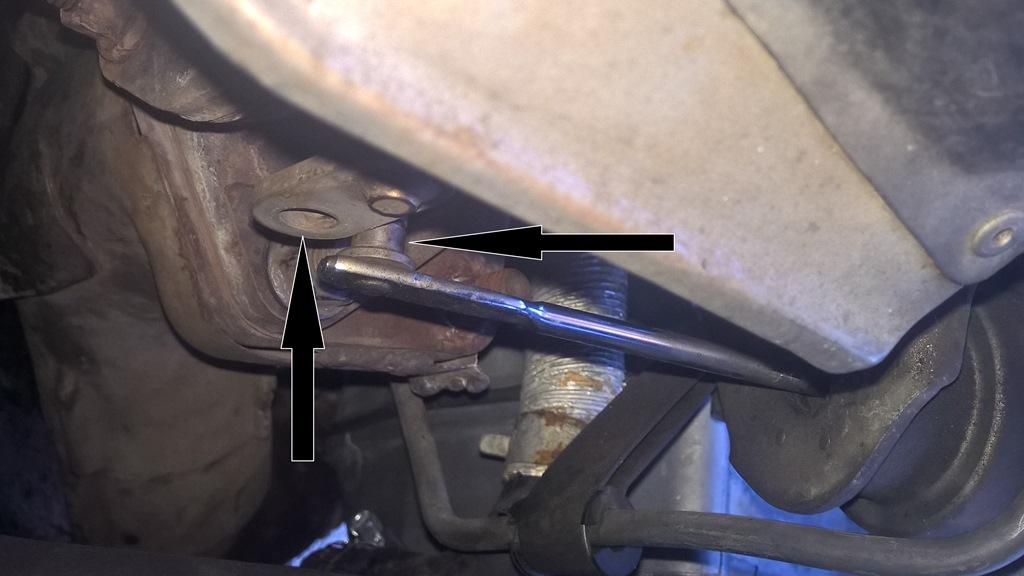

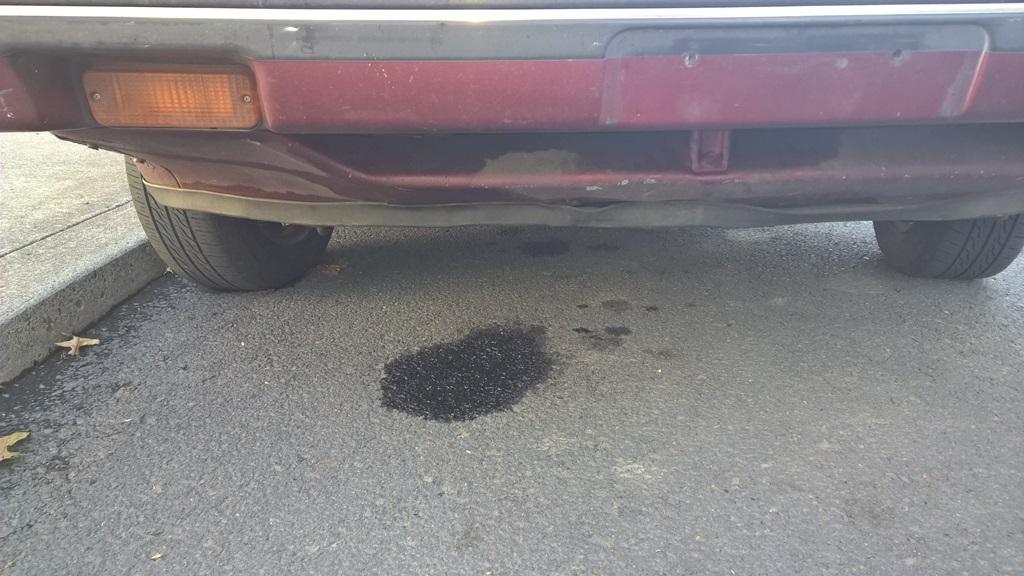

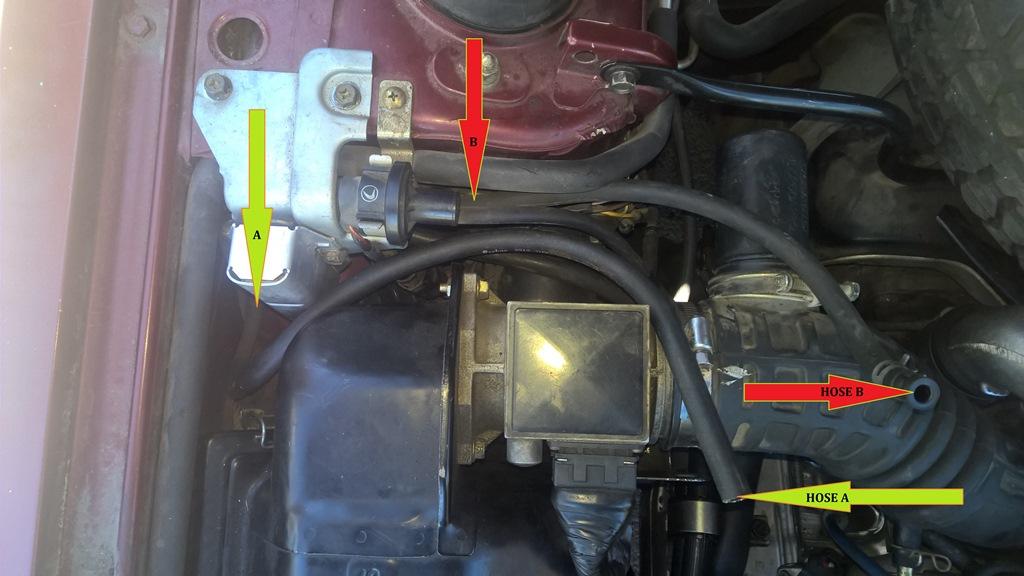

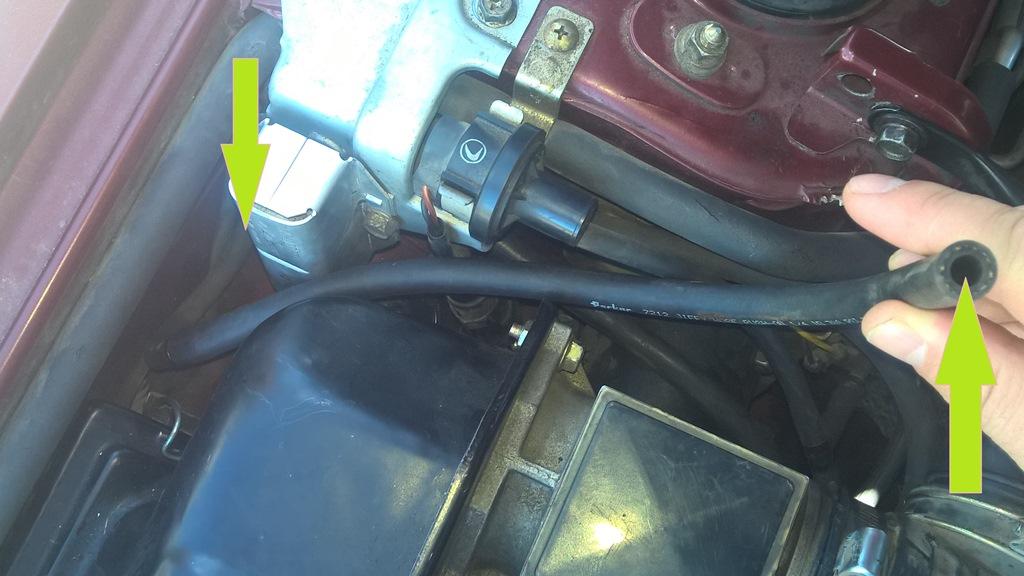

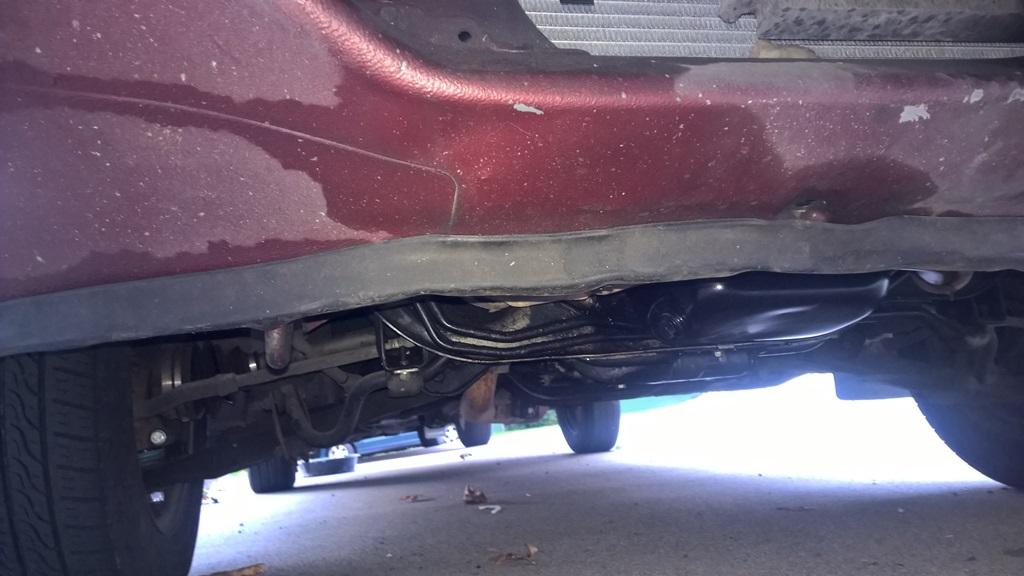

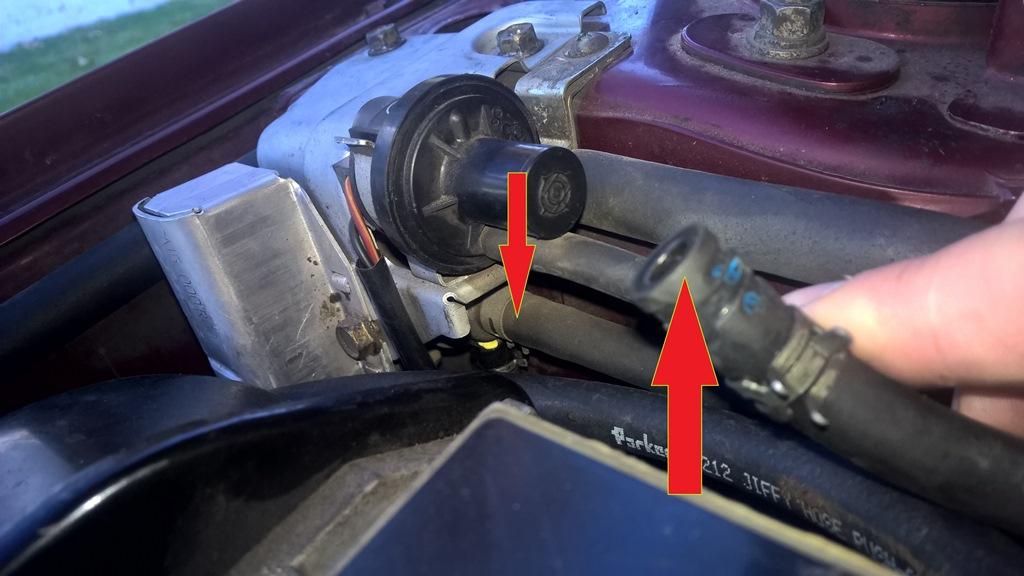

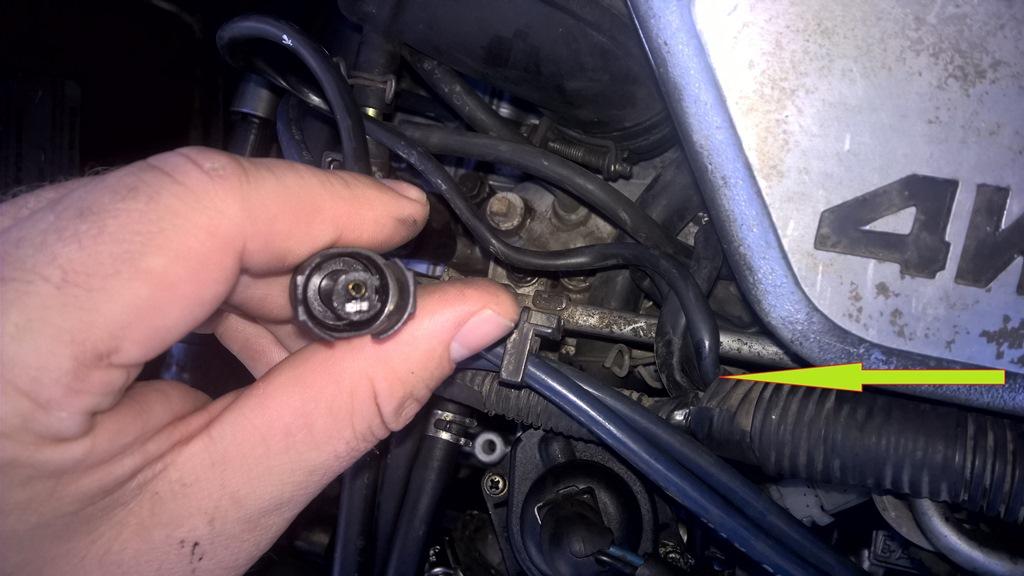

After searching for almost a year, my fiance and I got this car in the spring of 2016 for her to use as a commuter during bad snow days. Shortly after purchasing it, we took it to a local mechanic to have it inspected and to address any glaring issues. We ended up putting in new wheel bearings, suspension, flywheel, clutch, axle shaft assembly, and several other things. Before the mechanic was done working on the car, it was stolen off of his lot (left unlocked with keys in the ignition). The kid who stole it couldn't drive a stick and blew the engine about a mile up the road. Other than the blown engine, no other apparent damage was done. They ended up catching the kid who stole it and he was ordered to reimburse the mechanic for the damages. The prosecutor told me the mechanic was responsible for replacing the blown motor. Fast forward more than a year - we just got the car back. The mechanic really dragged his feet finishing the job and gave me a sob story of how he spent $7,000 of his own money fixing the car. Also, when I picked the car up, he sent up some red flags that he may not have fully completed the swap. He said that it didn't have as much power as he thought it would, but "we all know how these old Subaru's are". I took the car for a test drive up the highway and noticed that the car was really lacking power and the turbo light only came on once and only for a second or two. After a brief visual inspection (I'm not the best mechanic), I was able to identify several problems. I have a Chilton coming in the mail and I downloaded the 1989 EA-82 FSM. I have also spent some time searching through the 1987-1996 repair instructions. I am having trouble identifying a couple of hoses and a connector. Any help identifying where these things go would be a huge help. Thanks in advance! There are two loose hoses that I think have to do with the turbo. I cannot figure out where they go. There is an electrical connector that is disconnected. What I think is the "waste gate valve controller" is not connected. The vehicle is leaking what looks like coolant. The front skid plate is missing!
-
Hello, First post on this Forum! It has been killing me on my 1997 Subaru outback to get the pin connections out of the baby blue B84 connector. I am trying to ground out Pin #81 to remove the CEL for the egr valve. The previous owner swapped the 2.5 for a 2.2. They changed the original automatic transmission to a 5 speed, so I am getting the CEL for the EGR because originally the car had a EGR valve but the new 2.2 does not have an EGR. So after hours of research I found if you ground out Pin 81 at the ECU it will tell the ECU that the car is a manual and does not require an EGR. Here in lies the problem, I for the life of me can not get the pins to release to move them! Could some one please let me know the secret to releasing the pins! I have stuck tiny screwdrivers in every hole and cant get one to release, there is not wire retainers to release. If you look at the pic below you can see what connector I am trying to work with. Thanks! connector.pdf
