Mr. Brat Posted February 7, 2010 Share Posted February 7, 2010 I know someone just recently posted a listing about the wiring on the 5 spd swap. But that was only for the revese lights and the low range indicatior on the dash. I went the to the junk yard and liked up a 6 pin plug from an EA82 car that had the d/r trans. I ran 2 wires from inside where the 4wd micro switch was down threw the trans tunnel and ran it forward with the other wiring ontop the trans. The wiring connections are as follows: Low range indicator, Green/Black to Blue/Red Black to Black Reverse light Green/White to Green/White Green to Green/Black 4wd (I ran a Blue and Black wire to the front) Inside Car Black to Black Green to Blue At 6 pin plug Black to Black Blue/Red too Blue Hope this helps out some of you. Link to comment Share on other sites More sharing options...

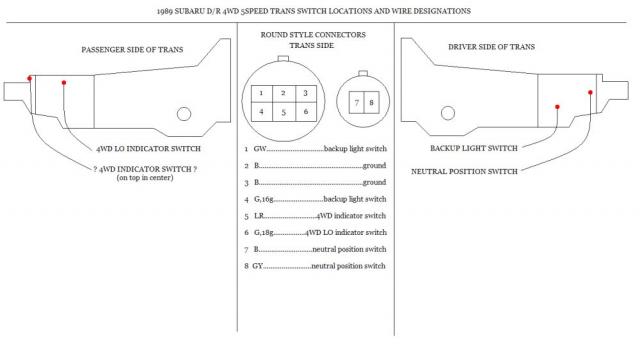

mountaingoatgruff Posted February 8, 2010 Share Posted February 8, 2010 I made this cheezy bmp when I did my 5speed swap into my hatch. D/R 5MT will have up to four external switches. Link to comment Share on other sites More sharing options...
Mr. Brat Posted February 8, 2010 Author Share Posted February 8, 2010 Yeah that would work also. I tried throwin something out there the was a little more detailed for some that arent so electrical savy. Link to comment Share on other sites More sharing options...
