Lifted Subaru's 2011 Edition


one eye
 Share

Recommended Posts

Zap Ive been waiting for you to make a thread of this but you havnt yet, so here I go, not tryin to push you out of the way I just like these kinds of threads.:)



So here goes lets see your lifted Soob, Just like all the other years dont go overboard with the pics one to three will work, not fifty, tell us what it is and just a little overhead on it...................

I'll kick things off.....



8" JAW Lift

31X10.50X15 TSL Super Swapers

six lug

EA81

Straight Piped

Custom cheap homemade bumpers :)

fun







Jeff

Edited by Turbone
Link to comment
Share on other sites

Current Soobs with lifts






82 Brat.

ea81 engine, 5 speed D/R, sammy t-case w/ rear driveline disconnect.

toyota solid axles, TJ Coils, toyota IFS/Subaru power steering.

4 link rear, 3 link front.

36" TSL SX tires on 17x9 steels. 17 gal. fuel cell.






86 Brat. 3" BYB/Ozified lift, Genuine Subaru 14" alloys., rear disks...

for sale this spring....




Mountain Grizzly. 4" BYB/Ozified Lift.

weber 32/36, rear discs, welded rear diff, ea82 rear coilovers.

lots o' stuff.

27x9.50x15 Swamper SSRs on redrilled 15x7 wagon wheels.

Link to comment
Share on other sites

1990 Loyale

manual locks,windows,mirrors, no AC, no tilt wheel (perfect for a wheeler, less to go wrong!)

6" homebuilt lift

subframed (with carrier bearing mounted to it)

homebuilt bumpers (with engine guards and fuel tank sliders too, connected to subframe F/R)

sleeved extended radius rods

boxed/gusseted control arms

welded diff

rear disc brakes

WRX buckets

CD/CB/PA/KC's

ej22

exhaust routed OVER driveline and rear X-member

D/R tranny

29" swampers



New for 2011:

homebuilt roofrack with shovel/jack/spare mounts

RX front springs

(cut) Accord (front) springs in the rear

The springs added roughly another 2"-3" inches of lift :banana:




  • Like 1
Link to comment
Share on other sites

Here we go...........



1991 Loyale

9" BJ LIFT!

EJ22

Rear Disc brakes

homemade custom rear bumper (Front soon)

Warn winch

for now 235/75 15s (soon to have 31's :lol:)

Custom Front brake set up

15 inch Pugs

Custom Exhaust ( tucked up)

Sorry no wheeling shots yet........ hopefully soon

0130011250.jpg[/img]



download.jpg[/img]


Edited by 88Subi4x4
Link to comment
Share on other sites




Just got the wheels and tires mounted up today. Still have a bit more bashing to do up front, but otherwise my experiments in compression have shown rubbing only when turned all the way and stuffed



4" SJR lift,

235/75/R15 on 4 lug Diamond Racing Wheels (~59bucks a piece)



(The thing on top is a lumber rack for work)

Edited by Turbone
  • Like 1
Link to comment
Share on other sites

Got my new tires today :)



I had to remove the front fender liners, cut the front bumper a little more, and pound in the front of the rear tire well just a little to get them to fit. They don't rub at all right now, but I would like SOME kind of front fender liner in there...









Little comparo I put together, doesn't show much very well though:






More pics:






Edited by Kostamojen
Link to comment
Share on other sites

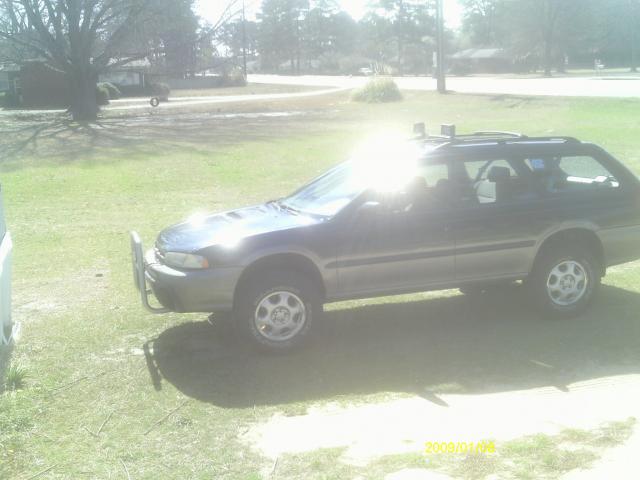

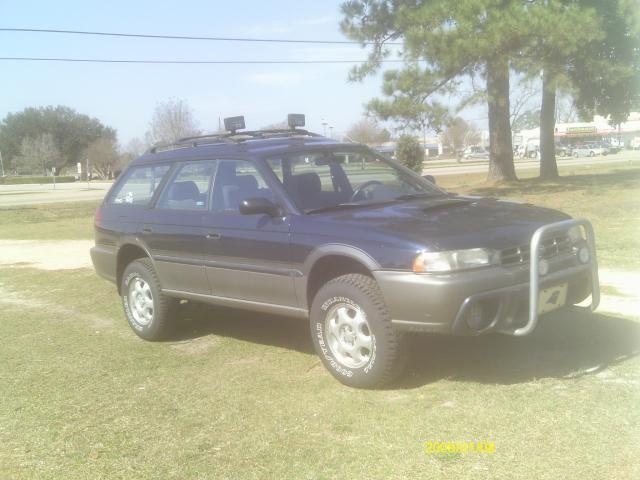

95' legacy with 98' ourback struts with 28x 8.50 r 14 super swampers and some 205 70 r15 snow tires, some rear pinch weld mods, slight fender trim. also entire front core support has 1/4 inch plate steel for bumper mount and rear diff welded. hoping to get another three inches of lift soon and 31's.





IMG_0424.jpg?t=1300462201





IMG_0418.jpg?t=1300462252



IMG_0419.jpg?t=1300462347

Edited by subimonster
Link to comment
Share on other sites

  • 3 weeks later...




86 BRAT

6" Lift (Bill Omlin)

Weber Carb

Redrilled yota wheels

225/75/r15 tires

Welded rear diff

Pre 86 jump seats installed w/ custom mounts (removable too)

5 speed dr

Separate hi/lo 4wd shifters

Simple front and rear bumpers



Soon to come

Custom exhaust with wrap around headers to increase clearance

roll bar

better bumpers w/ winch

lights!

And maybe the high powered ea81 that was build by Qman, installed in "The Beast" and is now in the garage with cracked head.



Big thanks to Bill for his expertise, great work, and all his help!



-Andy

Link to comment
Share on other sites
