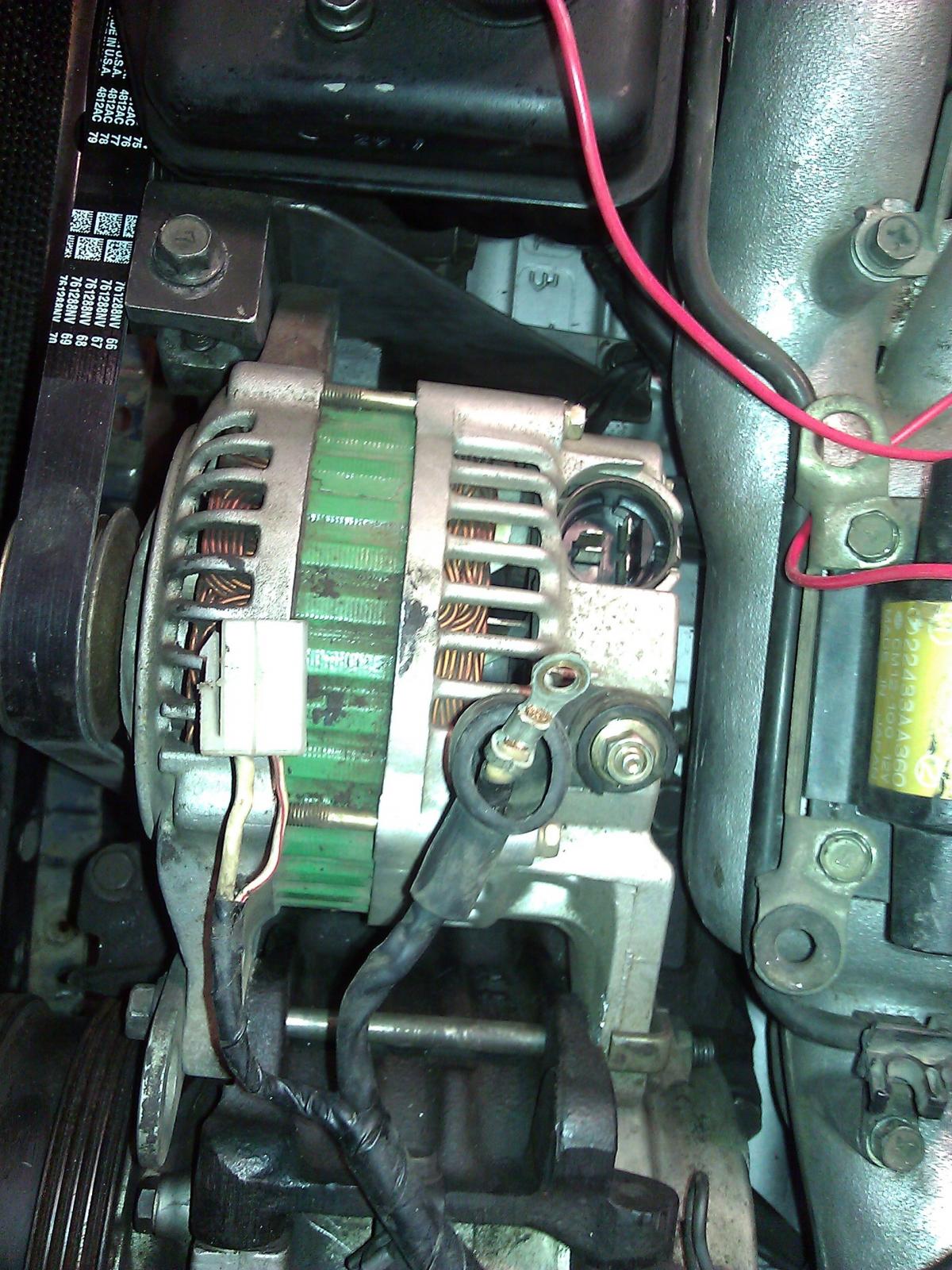

Naked Buell Posted June 3, 2013 Share Posted June 3, 2013 The 2.2T is in the Brat. How do you hook up the new alternator with the old wires? Anyone? Link to comment Share on other sites More sharing options...
Mykeys Toy Posted June 3, 2013 Share Posted June 3, 2013 wish I could help.. The stocker the GM and the Maxima alt are only two wire.. I am going to assume you need one of those plugs going to ground the other two are the one to splice into the stock plug.. Someone will be able to accurately answer though. Link to comment Share on other sites More sharing options...
Naked Buell Posted June 4, 2013 Author Share Posted June 4, 2013 I do have the stock plug for the 2.2T alt so if anyone knows how to do this?? Where's General Disorder? He would know! Anyone???? Link to comment Share on other sites More sharing options...
Gloyale Posted June 4, 2013 Share Posted June 4, 2013 Black/white wire of the EA to the Yellow wire of the EJ plug. White/Red wire of the EA to the Black/white wire of the EJ plug. Big white EA wire to the charge terminal. You may want to run a new wire back to the Fusible link box, or at least replace the last 6-12 inches of wire with new and a new ring terminal. Link to comment Share on other sites More sharing options...
