utcoyotehunter Posted December 12, 2014 Author Share Posted December 12, 2014 As far as pictures I will post some when I have more time to learn how. As far as my intent on what to build it looks as though it will be a 4 seater. I haven't been able to find any plans I have even contacted rhino buggies. They said that they did not buy that side of the business. I assume that plans would be a huge benefit when locating the drive train and suspension. If I cant get any plans or dimensions my intent is to remove the body from the fire wall back maybe keep the floor and build the body out of tube. I also intend on lifting it 2+". I will keep looking for the plans and with any luck sweet 82 will show and I can lean on him a little. It seems that all of the old pictures on the form are lost. Link to comment Share on other sites More sharing options...
ferp420 Posted December 12, 2014 Share Posted December 12, 2014 i wouldent look for a set of plans just look at as many buggies as you can and find one you like and copy it the best you can Link to comment Share on other sites More sharing options...
Gloyale Posted December 12, 2014 Share Posted December 12, 2014 Bolt bars across the strut towers to tie them together. Do the same with the rear towers and also add a few diagonal bars down to the floor (seat belt bolts?) Now the geometry is fixed......no matter how much of the body you start to take away (leaving just floor and firewall/front unibody) Peel off as much of the subaru body as you like........then add your tube over for roll cage and reinforcement. Link to comment Share on other sites More sharing options...
monstaru Posted December 12, 2014 Share Posted December 12, 2014 I really say that if you still think you need plans, you should probably not tackle this. Just a waste of money and time. Just my .02 cents. cheers Link to comment Share on other sites More sharing options...
Scott in Bellingham Posted December 12, 2014 Share Posted December 12, 2014 I have no plans , just experience, someone proficient in welding and fabricating in light steel , as you will need to weld to sheetmetal to do it strong, I have done this and can assist Link to comment Share on other sites More sharing options...
monstaru Posted December 12, 2014 Share Posted December 12, 2014 you gonna go to Utah Scott? because telling someone how to weld over the internet is like punching a monkey in the face. It just doesna work.lol cheers Link to comment Share on other sites More sharing options...
Gloyale Posted December 12, 2014 Share Posted December 12, 2014 ..............t is like punching a monkey in the face. It just doesna work.lol It works........just not how you'd thought it would or want it to. Still an applicable metaphor. Link to comment Share on other sites More sharing options...
utcoyotehunter Posted December 13, 2014 Author Share Posted December 13, 2014 Gloyale, Thanks for the pointers on how to keep the suspension locations. Ferp420, I agree about copying what someone else has done. The problem I'm having is finding the pictures of buggies to copy. Scott, I appreciate your willingness to help and will more than likely ask for as much advice as possible. Monstaru, All I can say is wish me the best of luck. Give me as many pointers as you can think of. and I hope to surprise you. Teams go further than individuals. Link to comment Share on other sites More sharing options...

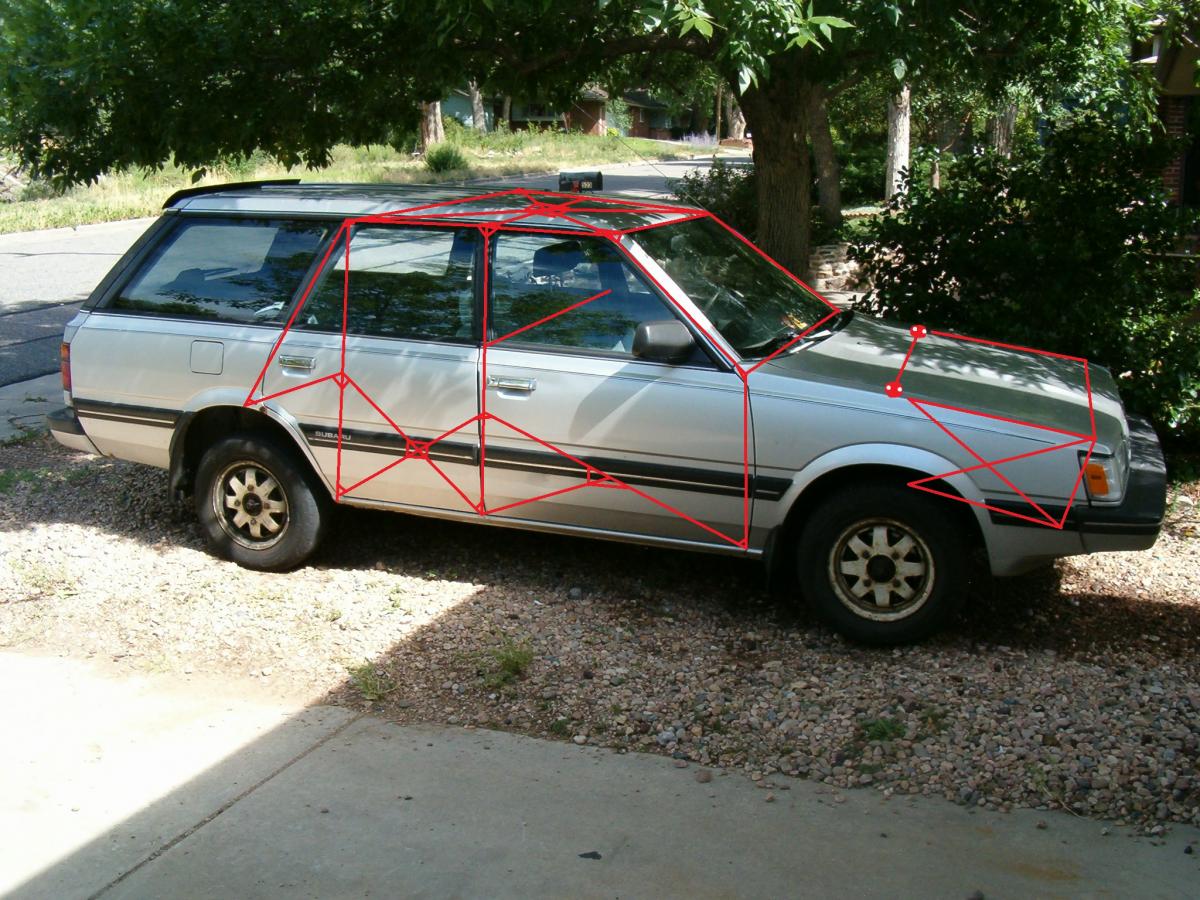

Uberoo Posted January 1, 2015 Share Posted January 1, 2015 (edited) First brace up the strut towers and the floor between the wheel wells.Then remove hood,doors,hatch,windows,fenders,bumpers,etc.Cut off subaru above floor,at the top of the firewall,and forward of the front strut towers and rearward of the fuel tank. then build something like this.Relocate the radiator to the back of the car for better approach angle.If you keep the firewall and vin number it can still be registered as a subaru-lights,fenders,and mirrors required... Edited January 1, 2015 by Uberoo Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 3, 2015 Author Share Posted January 3, 2015 I spent some time on a paint program last night with a few first drafts. I tryed to post it with no success. I got in the back seat and found that the back seat needs to be moved back about 4". Since it will be used and stored outside I'm thinking of using after market bucket seats. I also am planing to use 1.5 x 3" x.120 rectainglur tubing as the base frame and 1.5x.120 round tube on the body. Any inputs please. I will try to post a picture soon OK I will ask my bride to post them. Link to comment Share on other sites More sharing options...
Uberoo Posted January 3, 2015 Share Posted January 3, 2015 (edited) Rectangular tube?no.You just need 1.75x.120 for the main vertical hoops, and 1.5x.120 for all the triangulation.The tubes get mounted to the sheet metal with a 6x6.120 steel plate that is contoured to fit the sheet metal where ever a tube ends at the sheet metal.Also look up rollcage design and construction techniques then post back if you have any questions on what you just read.Rollcages are kinda of an all or nothing item.A poorly welded or poorly designed rollcage is actually worse than no cage in any crash involving more than flopping the vehicle on its side/roof at 2 mph. Edited January 3, 2015 by Uberoo Link to comment Share on other sites More sharing options...
R.Drifter Posted January 4, 2015 Share Posted January 4, 2015 Glad I found this post. I am looking for a winter project. I am new to this form and signed up to find just this type of info. I bought a 83 GL wagon a couple years ago to use engine on a hovercraft I was building. I found a lighter ea71 and used it instead. The car ran good but is a rust bucket with 120K. It has a 4 speed hi/lo trans. I currently have a Polaris 800 Crew that does a great job but does not turn very tight and can not be made street legal. Looks like a great project and I see a lot of expertise in the suggestions on this sight. Looks like it is time to clean out a bay in shop and get started. I have been looking at several home builds on line that came out looking great. Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 4, 2015 Author Share Posted January 4, 2015 Uberoo, Thanks for the input. I was designing the cage in horizontal levels not hoops from front to back. It still seams that it would be weight well spent to have a beefier base frame like the rectangular tubing across the outer edge of the unibody instead of the 6x6 plate. Link to comment Share on other sites More sharing options...
Uberoo Posted January 5, 2015 Share Posted January 5, 2015 the box tubing will crush, severely compromising the structural integrity of the entire assembly.The contoured plate on the other hand will help spread the loads to the unibody. If box tubing was a good idea it would be used in everything requiring a rollcage.Adding weight for the sake of adding weight is not a good thing because then the cage has to be stronger to deal with that extra weight,the stronger cage weighs more...Think of it this way you could build a very strong and very heavy steel buggy that weighs 3000lbs but will only support 5000lbs(just throwing numbers out). that cage is 1.6x stronger than it needs to be.On the other hand through proper design you could build a buggy that would support the same 5000lb load while only weighing 2000 lbs, which would make it 2.5x stronger.When things start going south in a hurry the forces on each cage would ramp up quickly-which one would fail first? Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 5, 2015 Author Share Posted January 5, 2015 I didn't think you could think you could talk me out of the rectangular tubing. Well I think you just did. Link to comment Share on other sites More sharing options...
apintonut Posted January 17, 2015 Share Posted January 17, 2015 (edited) My 2 cents if I was going to build another 1 I would use 2x2 .120 square wall and flip the gutted donor car over and copy the unibody rails but carry to the rear end keeping the cross member and tranny mounts same locatio then build a 1.5 x .120 wall dom cage Edited January 17, 2015 by apintonut Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 18, 2015 Author Share Posted January 18, 2015 I had originally considered doing that. But at this time I think it would be more work than I want to do. Link to comment Share on other sites More sharing options...
6 Star Posted January 18, 2015 Share Posted January 18, 2015 Don't know if you have seen this already. http://seattle.craigslist.org/oly/bar/4824951920.html Kind of far from you, but maybe you could pick the seller's brain about it or get some ideas from its design. Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 18, 2015 Author Share Posted January 18, 2015 No I had not seen it. That is a great idea to see if he has the rhino plans. Due to the grandkids do most everything with us I have to build it in a four seater. Link to comment Share on other sites More sharing options...
apintonut Posted January 19, 2015 Share Posted January 19, 2015 I have seen that buggy he did not build it has no info on it at all. Rhino plans???? I have no reference on this more info? Link? Pic? Link to comment Share on other sites More sharing options...
apintonut Posted January 19, 2015 Share Posted January 19, 2015 (edited) Never mind I've seen 1 of these and may know where to get a choppy of the plans if he still has them http://www.4wdonline.com/2000/000712-Rhino.html This guy may have them Message him Edited January 19, 2015 by apintonut Link to comment Share on other sites More sharing options...
apintonut Posted January 19, 2015 Share Posted January 19, 2015 (edited) Hmm link doesn't wanna post OK YouTube search Subaru Buggy Part 1 Or http://www.ultimatesubaru.org/forum/topic/90869-buggy-build/ Edited January 19, 2015 by apintonut Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 20, 2015 Author Share Posted January 20, 2015 Great idea I just sent toobsoob a notification. it is taking me long enough to started that some of these old members may log back in. Thanks for the help. Link to comment Share on other sites More sharing options...
apintonut Posted January 20, 2015 Share Posted January 20, 2015 jbain8. & BioHazard2222 claim to have a set in that thread I wish I know these existed when I started my build I've been building mine the hard way Link to comment Share on other sites More sharing options...
utcoyotehunter Posted January 22, 2015 Author Share Posted January 22, 2015 Apintonut, I don't know where you find all of this information but I'm sure glad that you do. I looked at jbain8 and biohazard2222's profiles they haven't been on for 4 and 5 years. I will still send them a email but it is another long shot. Thanks Link to comment Share on other sites More sharing options...
