Yellowbugeye03 Posted October 11, 2016 Share Posted October 11, 2016 Digging into other issues ive stumbled upon a mess under the dash of bare and broken wires. If anyone could help me out and post up some pictures of whay its supposed to look like it would make my life alot easier and i would appriciate it Link to comment Share on other sites More sharing options...

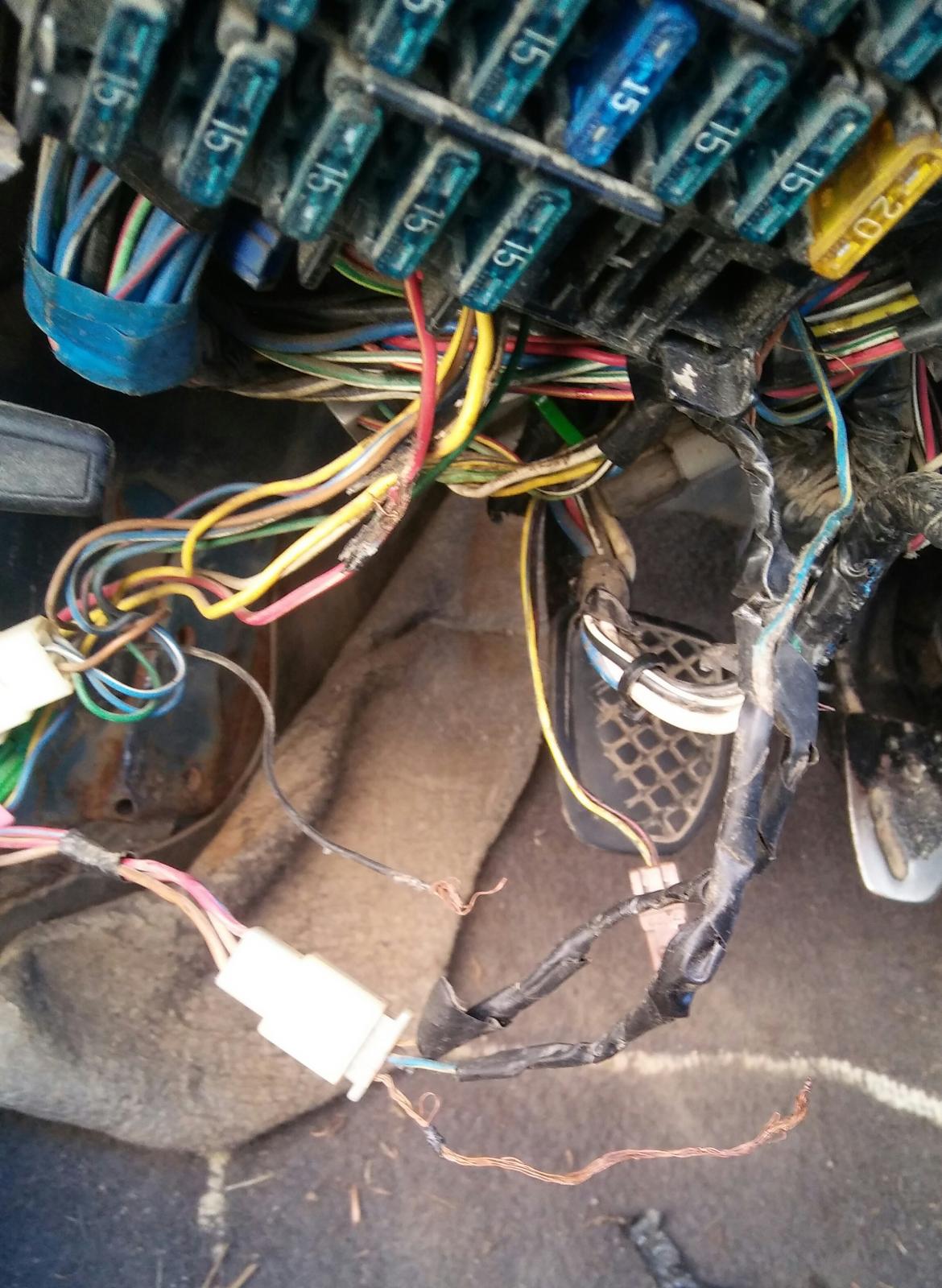

Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 (edited) As you can see this is what im dealing with Edited October 11, 2016 by Yellowbugeye03 1 Link to comment Share on other sites More sharing options...
alexbuoy Posted October 11, 2016 Share Posted October 11, 2016 All of the wiring under the dash or just under the steering column? Do a search and I'm sure you can find a diagram. If it's under the steering column I can snap pics tonight Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 It's by the fuse box I tried to upload a picture with my last post but the pictures were too big Link to comment Share on other sites More sharing options...
DaveT Posted October 11, 2016 Share Posted October 11, 2016 Use a photo editor to crop and / or re size them smaller. Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 This is what im dealing with i didnt think about croping them Link to comment Share on other sites More sharing options...
alexbuoy Posted October 11, 2016 Share Posted October 11, 2016 image upload That's all I have I will try to get more detailed pictures when I'm home Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 Awesome i appriciate it if you could get some closer to the fuse box and behind it that would be greatly appriciated Link to comment Share on other sites More sharing options...
DaveT Posted October 11, 2016 Share Posted October 11, 2016 There are about 3 screws that hold the fuse box in place. Remove them, and you can get some different angles /access. There are a lot of wires so it will be stiff to move. Link to comment Share on other sites More sharing options...

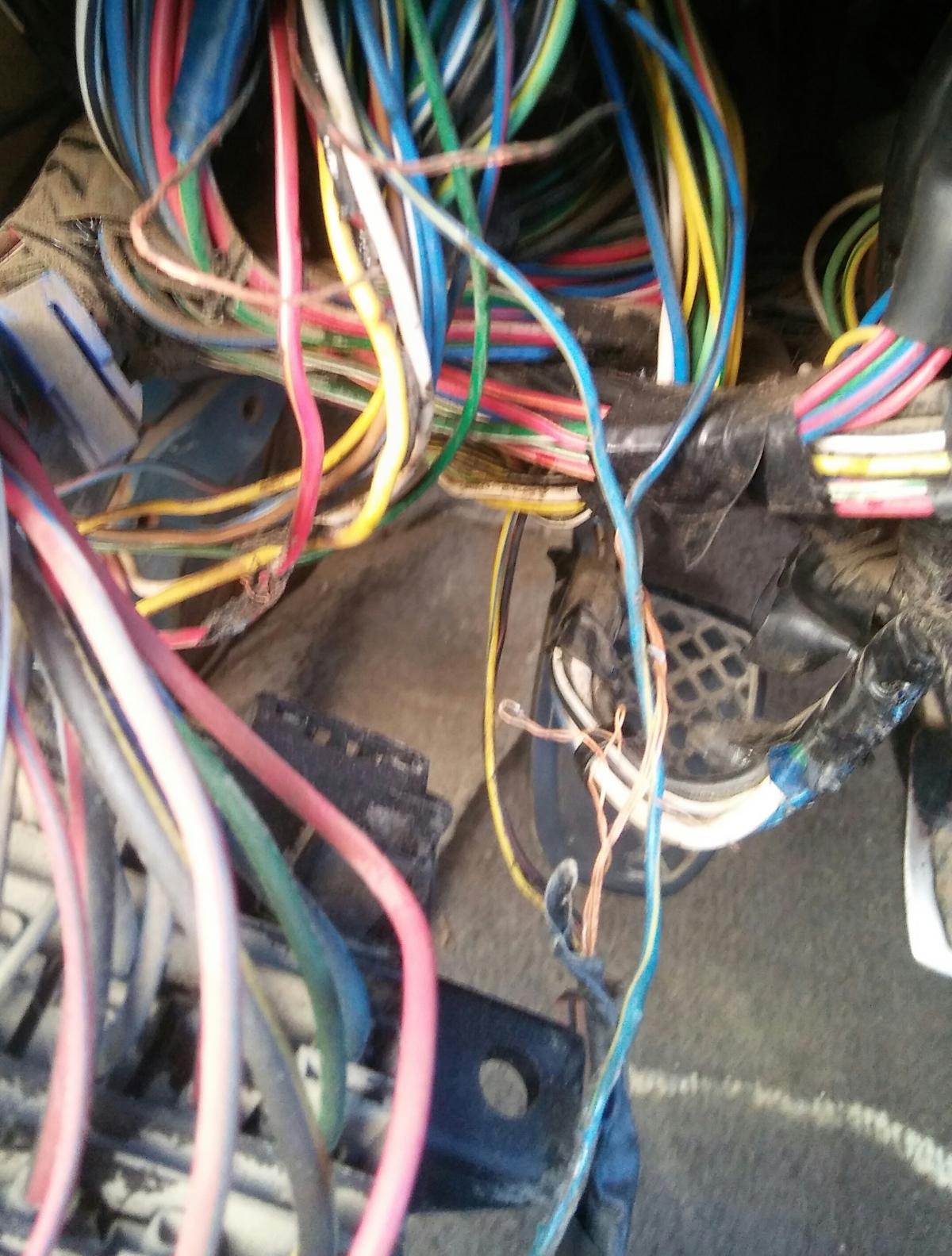

Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 In the second picture i dropped the fuse box and theres a couple of wires that are bare and broken in that one too i just need to know where they go and what goes where so i can replace them Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 (edited) Kind of hard to see in this one but there are 2 bare wires i jeed to know where they go if possible Edited October 11, 2016 by Yellowbugeye03 Link to comment Share on other sites More sharing options...

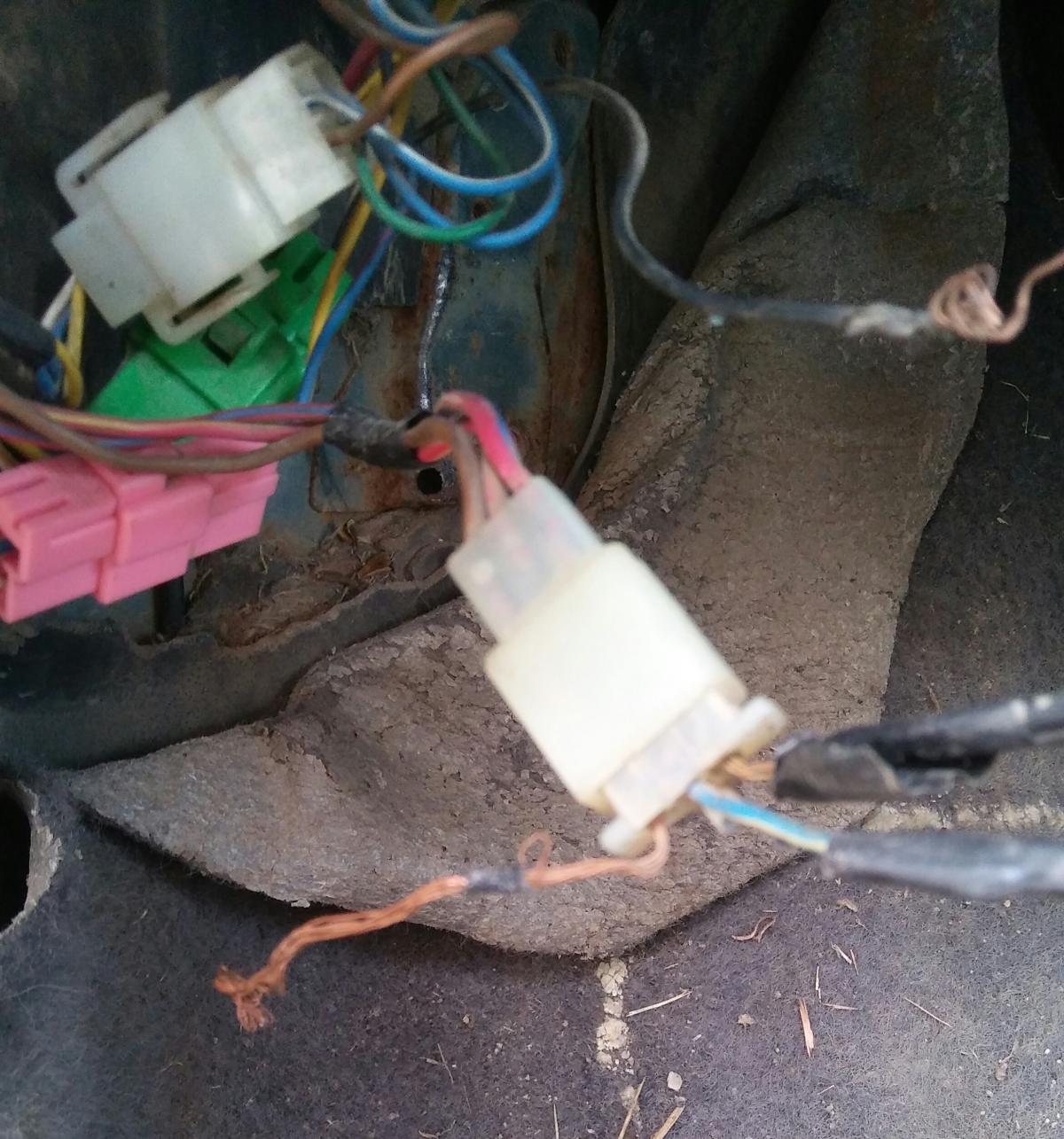

Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 Where this wire goes on this connector Link to comment Share on other sites More sharing options...

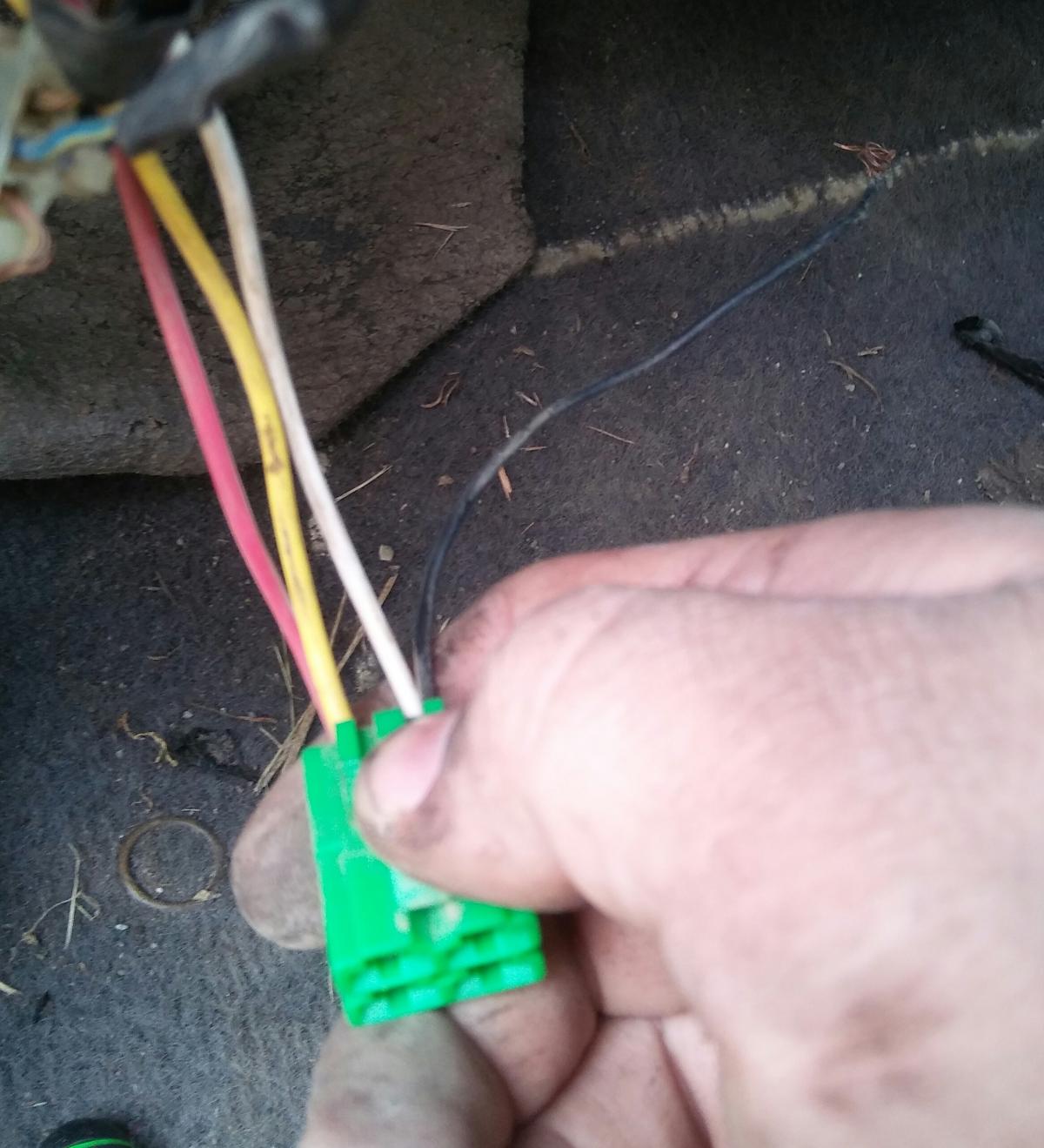

Yellowbugeye03 Posted October 11, 2016 Author Share Posted October 11, 2016 (edited) And where the black wire goes on the green connector by the pink one Edited October 11, 2016 by Yellowbugeye03 Link to comment Share on other sites More sharing options...
TomRhere Posted October 12, 2016 Share Posted October 12, 2016 This is what im dealing with i didnt think about croping them In the 1st pic, those wires appear to have been smashed together enough to destroy the insulation. That caused a short, and heated the Black wires enough to burn off the insulation on them, also burning those wires in two. The pic in post #11 shows even more of those burnt wires. It also shows a Blue wire that appears to have been burnt in two itself. Look at the upper left of center in that pic and you'll see it Not 100% on it, but it looks like there is heat damage to the insulation of other wires in all of your pics. Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 12, 2016 Author Share Posted October 12, 2016 Yea thats porbably whaf happened but im just not sure where what is broken goes so i can put new wires in and im not so good at readinf wiring diagrams so all the help is deffinetly appreciated Link to comment Share on other sites More sharing options...
DaveT Posted October 12, 2016 Share Posted October 12, 2016 What year is the car? What model? Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 12, 2016 Author Share Posted October 12, 2016 Its a 94 loyale Link to comment Share on other sites More sharing options...
DaveT Posted October 12, 2016 Share Posted October 12, 2016 Wagon? I can try to get pictures of an undamaged one. Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 12, 2016 Author Share Posted October 12, 2016 Yes wagon if you could that would be awesome! Link to comment Share on other sites More sharing options...
alexbuoy Posted October 12, 2016 Share Posted October 12, 2016 photo hosting Link to comment Share on other sites More sharing options...
alexbuoy Posted October 12, 2016 Share Posted October 12, 2016 (edited) upload an image And then those connectors Edited October 12, 2016 by alexbuoy Link to comment Share on other sites More sharing options...
DaveT Posted October 13, 2016 Share Posted October 13, 2016 Here is the back of a fuse block. EA82 Not sure what year. Most should be the same.If you can find a FSM - either in paper or online download, and can identify the wires you are missing / burned / broken I [and likely others] can more easily identify them. I have a 90 FSM. A few things are different - My 92 and 93 have those annoying motorized lap belts. My 90 and older had regular ones. So far, the 90 manual has been good for the 92 and 93. Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 13, 2016 Author Share Posted October 13, 2016 Hopefully i can get everything i need from these pictures thank you all Link to comment Share on other sites More sharing options...
MR_Loyale Posted October 13, 2016 Share Posted October 13, 2016 I wonder if those burnt wires have anything to do with a stereo install gone wrong. Stock ea82 has a common ground on the speakers. Link to comment Share on other sites More sharing options...
Yellowbugeye03 Posted October 13, 2016 Author Share Posted October 13, 2016 Ya know that would make sense there was an aftermarket deck in it and it didnt turn off automatically Link to comment Share on other sites More sharing options...
