Improved solvent parts washer

[czny]

2 months ago I needed to top off my old 20 gal. solvent parts washer, but since the local Ace Hardware had closed wasn't able to special order mineral spirits in 5 gal cans anymore. Looked for mineral spirits at all the big box stores but none to be found here in Commiefornia. Bought some 1 gal cans of "paint thinner" - which what we used to call mineral spirits - at a Home Depot only to find out it strips in interior paint of my parts washer, melts nylon parts brushes & more. No warning about this on the cans either!



Decide to convert the old one to a water based washer & buy a new one strictly for solvent. More about the old washer later.

http://www.ebay.com/itm/20-Gallon-Mobile-Parts-Washer-Cart-Electric-Solvent-Pump-Drying-Shelves-Cleaning/231810887958?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649



Unfortunately, these have pumps in them that won't tolerate solvent so I found a Little Giant pump to fit the purpose: model # PE-2YA

http://www.ebay.com/itm/LITTLE-GIANT-PE-2YSA-Pump-Parts-Washer/221568121193?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

Miniature strainer for pump are available at McMaster-Carr website. A 60 mesh, 3/4 pipe female thread was chosen for this pump.

https://www.mcmaster.com/#9877k815/=18br9so

Took about 8 days for solvent to arrive at TSC for local pick up. Much cheaper than store branded mineral spirits, but it is mineral spirits.

https://www.tractorsupply.com/tsc/product/crown-psc-1000-parts-cleaner-5-gal?cm_vc=-10005

Notice TSC sells that same parts washer...........convenient.

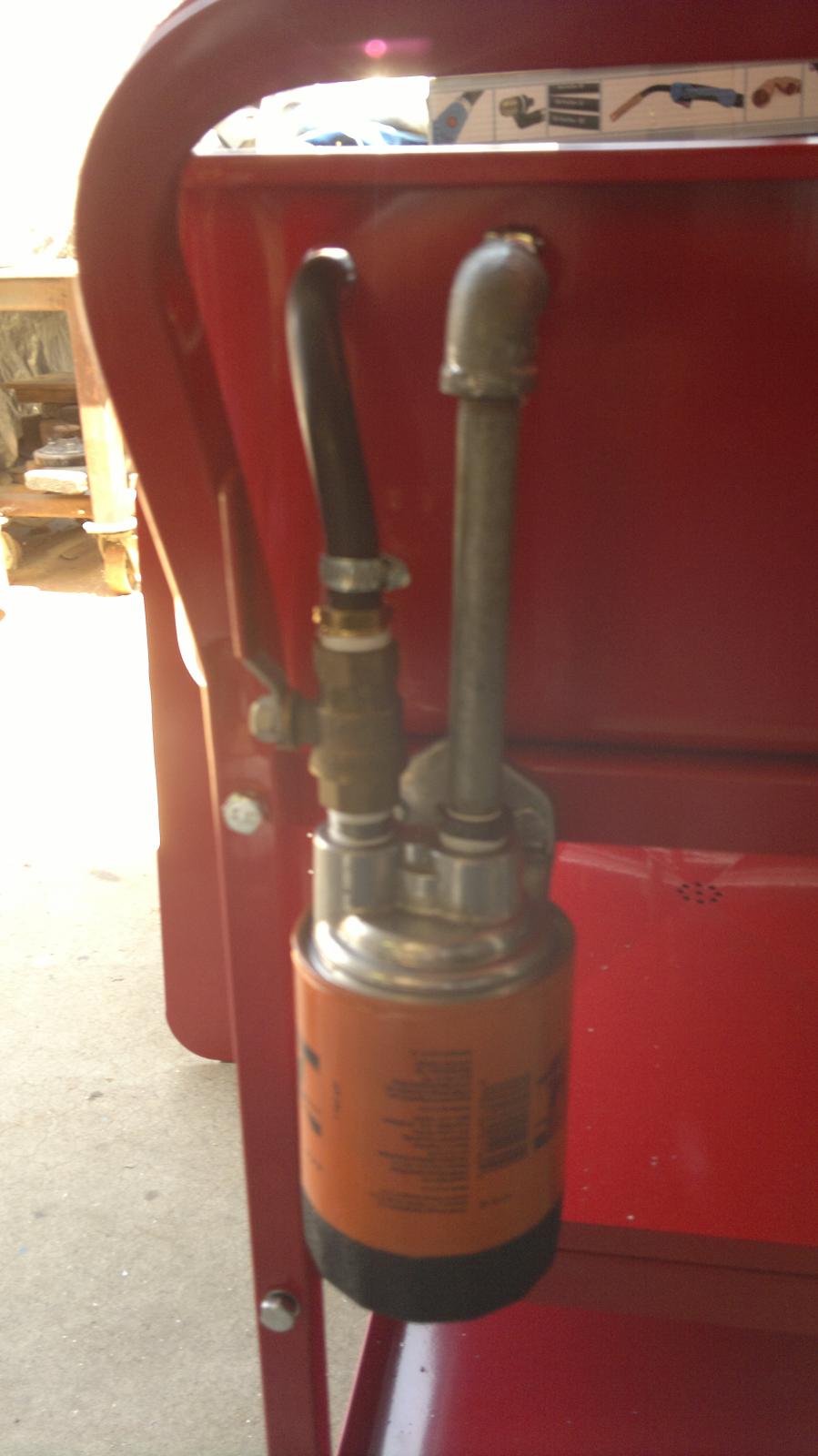

Replaced the cheezy China pump, plumbed with 3/8 pipe & 3/8 fuel hose & barbed fittings. Ball valve added to stop syphoning while changing filter. Filter is standard PH8A Ford screw-on filter with remote filter base available for $15-20. Tapped drain plug boss for 1/4 NPT. Secured 1/4 street elbow & close nipple to boss with JB Weld. Added 1/4 NPT ball valve & plumbing for easy draining. Fabbed a simple retainer for pump of 1 inch wide sheet metal to hold pump in place, a rectangle of rubber pad underneath to quiet pump noise. 3/4 NPT strainer on inlet of pump is to keep the big chunks out. Used old flex line from original parts washer & a bell reducer to 3/8 pipe plumbing. Flex line is 1/4 NPT male thread on those older import parts washers.



This Little Giant pump works really well - plenty of pressure through the filter. Parts washer instructions say 6 gal capacity but its more like 7 gal with the filter setup. So 2 5 gal cans of the Crown solvent are good to start with.

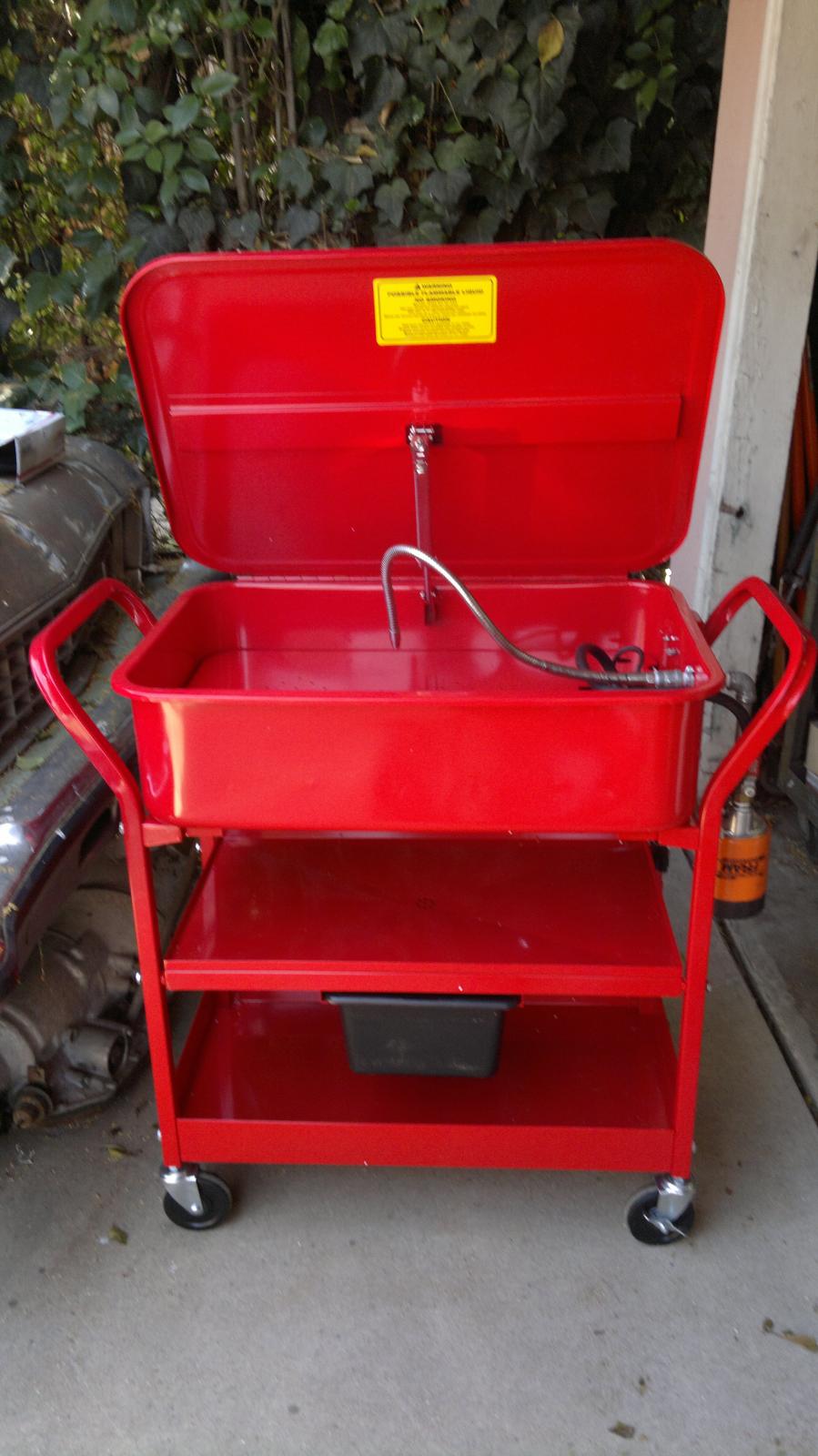

This will be my final assembly cleaning washer for engine & transmission stuff - no grungy parts allowed. This parts washer comes with, 4 caster wheels, a drain shelf, catch tray for solvent & bottom shelf.

2 hooks on left side for hanging parts brushes too.



Plans for old parts washer are to convert it to a heated water based washer for really dirty stuff. Graymills Aquilene 330 is good for this. Will post on that one later when done.

Edited July 3, 2017 by czny

[czny]

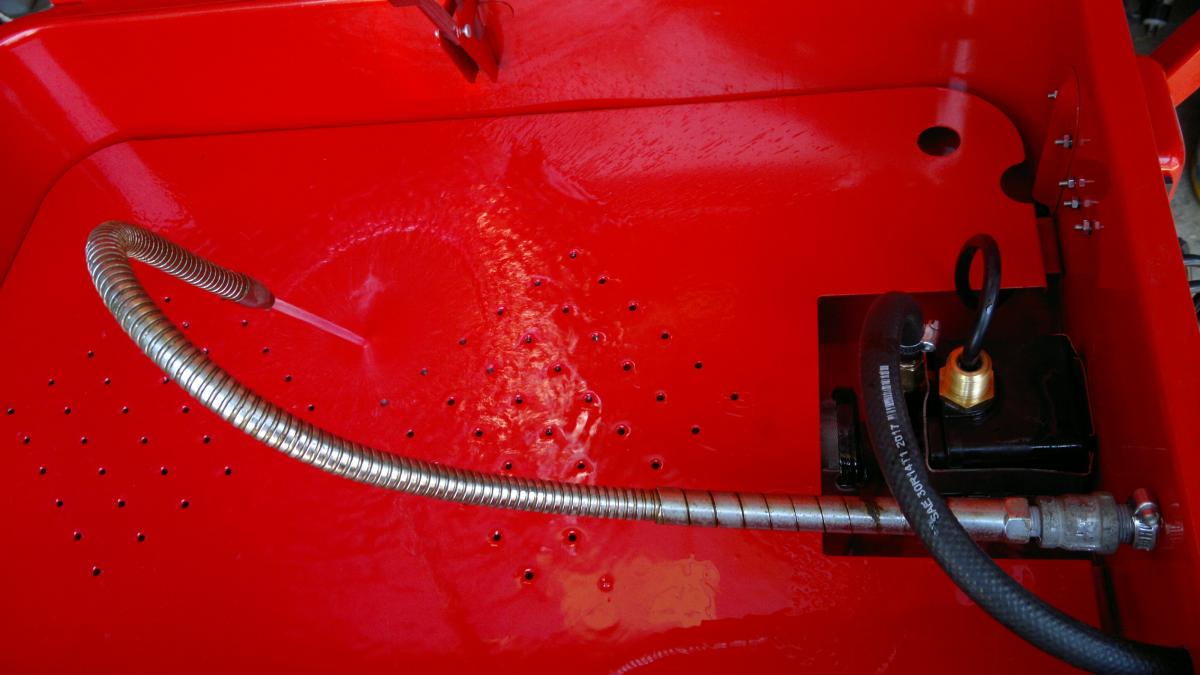

Here's pics of the cheezy China pump. Flex line has metric straight threads on connecting end so........

Edited July 2, 2017 by czny
