Ieholmquist Posted January 14, 2019 Share Posted January 14, 2019 I’m putting a 1992-1994 Subaru Legacy EJ22 into a vanagon type 2, but cannot find a wiring harness anywhere. Does anybody have any idea where to find one from those years, or if there is another one that would work just fine? Link to comment Share on other sites More sharing options...
el_freddo Posted January 14, 2019 Share Posted January 14, 2019 The ‘95-99 harness will IF you have the matching wiring from the intake manifold and possibly the intake manifold itself too. Cheers Bennie Link to comment Share on other sites More sharing options...
GeneralDisorder Posted January 15, 2019 Share Posted January 15, 2019 No one makes a harness. You have to pull one from a scrapped car. And the 90 to 94 stuff isn't worth having. Use a 95 or 96 harness, computer, and manifold. GD 1 Link to comment Share on other sites More sharing options...
el_freddo Posted January 15, 2019 Share Posted January 15, 2019 Thanks for verifying @GeneralDisorder It’s always “best practice” to get a whole car for a conversion. This way you have everything you’ll need other than a short list of incidentals. Unless you know what/how you’re going about the conversion, a whole donor vehicle is the go - then you can sell the bits you don’t need to recover some costs. Cheers Bennie Link to comment Share on other sites More sharing options...
Crazyeights Posted January 15, 2019 Share Posted January 15, 2019 (edited) @GD When going for the OBD 2 harness how do you deal with the fuel tank pressure sensor for Evap and the second o2 sensor if you aren't running a cat? Edited January 15, 2019 by Crazyeights Link to comment Share on other sites More sharing options...
GeneralDisorder Posted January 15, 2019 Share Posted January 15, 2019 I'm sure you mean fuel temp sensor - the 95/96 doesn't have one. None of the 90's cars have fuel pressure sensors. And for the secondary O2 you just put in a 90 degree spacer for the sensor and weld a bung into the mid pipe. GD 1 Link to comment Share on other sites More sharing options...
3Pin Posted January 15, 2019 Share Posted January 15, 2019 I have a whole 95 car with engine, trans etc, but it is in WI. Link to comment Share on other sites More sharing options...

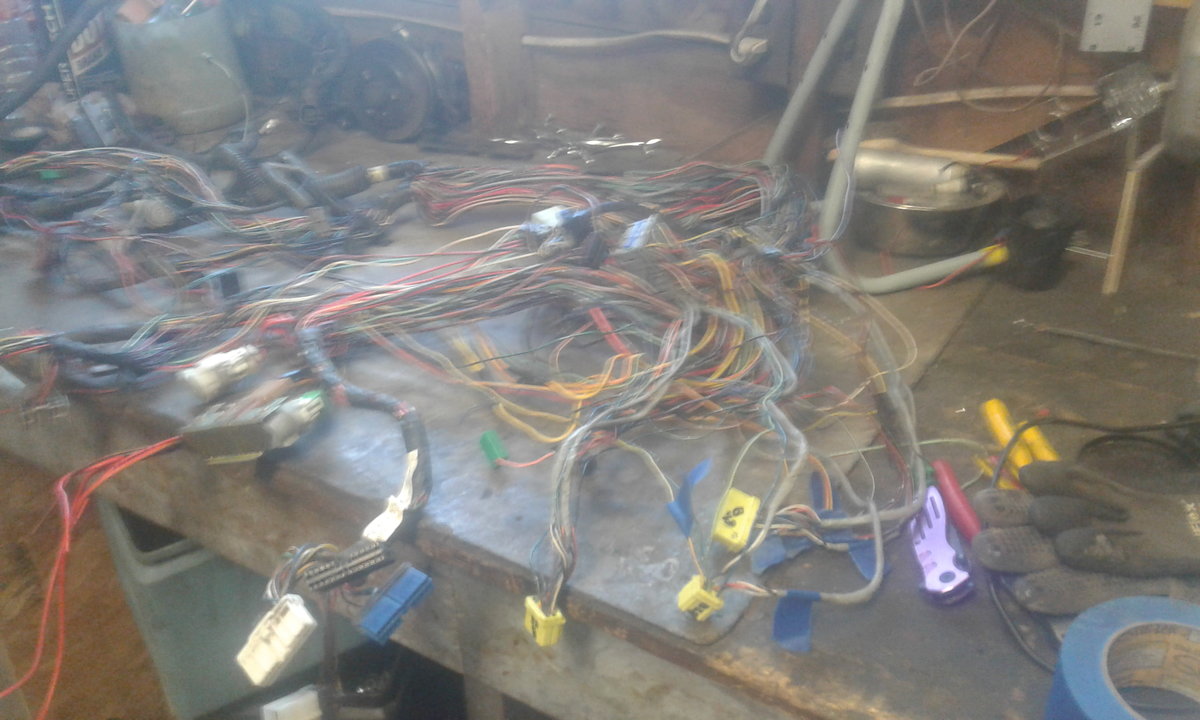

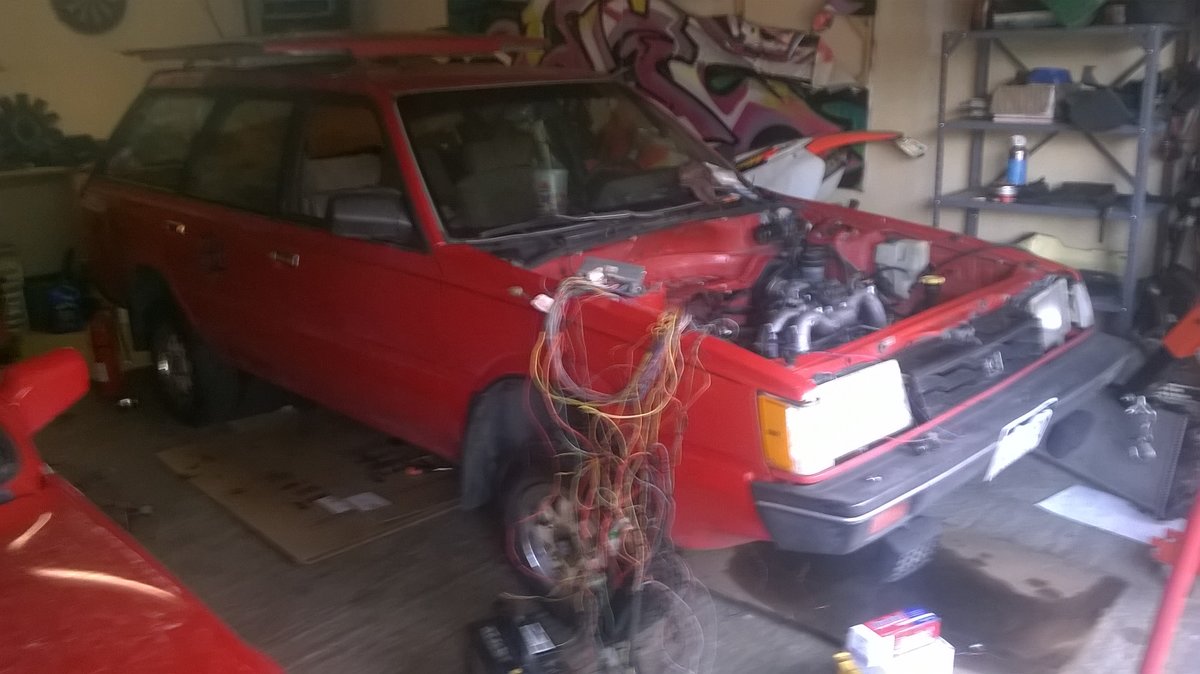

sparkyboy Posted January 16, 2019 Share Posted January 16, 2019 (edited) You can switch between obd1 and obd2 wiring if you have the matching wiring from the manifold. I find it easier to keep the manifold intact since the fuel injection is the same. I have to disagree with @GeneralDisorder on this one however. I have personally trimmed each type of harness and i found the obd1 harness a bit easier to work with because the ecu connectors are separated (rather than just one big connector) and the super multiple junction is a lot smaller. The obd1 is much easier to keep the cel. There is no reason in my opinion not to use the 90-94 electronics, especially since the imprezas came with obd1 until 96 i think. Just take the dash off and rip everything out. Busaru youtube channel has loads of pinouts. Two advantages to the obd2 is that the alternator pigtail is simpler (there is a double diode on obd1) and you can simply ground the neutral switch to disable the vehicle speed sensor. Edited January 16, 2019 by sparkyboy 2 Link to comment Share on other sites More sharing options...
FerGloyale Posted January 16, 2019 Share Posted January 16, 2019 4 minutes ago, sparkyboy said: You can switch between obd1 and obd2 wiring if you have the matching wiring from the manifold. I find it easier to keep the manifold intact since the fuel injection is the same. I have to disagree with @GeneralDisorder on this one however. I have personally trimmed each type of harness and i found the obd1 harness a bit easier to work with because the ecu connectors are separated (rather than just one big connector) and the super multiple junction is a lot smaller. The obd1 is much easier to keep the cel. There is no reason in my opinion not to use the 90-94 electronics, especially since the imprezas came with obd1 until 96 i think. Just take the dash off and rip everything out. Busaru youtube channel has loads of pinouts. Two advantages to the obd2 is that the alternator pigtail is simpler (there is a double diode on obd1) and you can simply ground the neutral switch to disable the vehicle speed sensor. Later OBD II harness is easier to trim. None of needed wires gtrghh SMJ so y can toss it. Hooking up CEL is EXCACTLY the same....1 wire. Fuel temp sensor is not ned to run engine. That said I have no problem running an OBD I harness/ecu in some of my swaps. OBD I and OBD II harness are completely NOT intaerchangable. 2 Link to comment Share on other sites More sharing options...
sparkyboy Posted January 16, 2019 Share Posted January 16, 2019 (edited) @fergloyale Very cool man. I might be a little biased because the first harness i trimmed was an obd2 and that involved a learning curve by a true efi rookie. But looking back i had fun and learned a lot so i flew through the obd1 What i mean by easier cel is you just have to hook up the green connectors and count the blinks. You can't do that on obd2? Edited January 16, 2019 by sparkyboy Link to comment Share on other sites More sharing options...

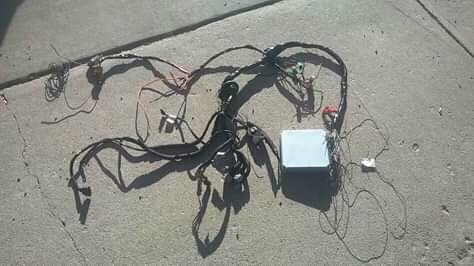

sparkyboy Posted January 16, 2019 Share Posted January 16, 2019 (edited) My completed obd2 what a pita! Bmw s52 wngine harnesses are already more or less separate, and I understand that gm harnesses for ls engines are pretty straightforward. Good times! Nice part about subaru ecus is that I understand they are low boost friendly. You have to get a megasquirt for beemer to even begin to think about boosting an s50 or s52. The m20 has a beast bottom end but still can't boost on the factory ecu. Hehe Edited January 16, 2019 by sparkyboy Link to comment Share on other sites More sharing options...
Crazyeights Posted January 16, 2019 Share Posted January 16, 2019 (edited) 48 minutes ago, FerGloyale said: Later OBD II harness is easier to trim. None of needed wires gtrghh SMJ so y can toss it. Hooking up CEL is EXCACTLY the same....1 wire. Fuel temp sensor is not ned to run engine. What about the Fuel Tank Pressure Sensor needed by the Evap system? Do the OBD 2 Subarus use this sensor? I am not talking about a Fuel Pressure Sensor which is totally different. In other words am I going to end up with a permanent CEL because of no Evap system? I have cut down several OBD 1 harnesses but still have the OBD 2 to do yet. OBD 2 seems to be all about getting the supported monitors to set. Thank you in advance. Edited January 16, 2019 by Crazyeights Link to comment Share on other sites More sharing options...
sparkyboy Posted January 16, 2019 Share Posted January 16, 2019 (edited) 33 minutes ago, Crazyeights said: What about the Fuel Tank Pressure Sensor needed by the Evap system? Do the OBD 2 Subarus use this sensor? I am not talking about a Fuel Pressure Sensor which is totally different. In other words am I going to end up with a permanent CEL because of no Evap system? I have cut down several OBD 1 harnesses but still have the OBD 2 to do yet. OBD 2 seems to be all about getting the supported monitors to set. Thank you in advance. I was going to suggest there are people who will trim your harness for a fee, it seems worth it if $250 and shipping is worth less than your time. Obd1 and 2 are esentially the same trimming wise. As far as the cel for fuel pressure sensor, i don't see one on the pinout are you referring to the atmospheric pressure sensor (pin 23?) I'm thinking that is for later obd2 maybe the phase 2? That might be one of those sensors that dosen't trigger a cel except for read memory but it should be easy enough to simulate the voltage and then delete it Edited January 16, 2019 by sparkyboy Link to comment Share on other sites More sharing options...
GeneralDisorder Posted January 16, 2019 Share Posted January 16, 2019 OBDII is much easier. I have done dozens of each. You will not have a permanent CEL if you do it right. 95/96 are easy. GD 2 Link to comment Share on other sites More sharing options...
el_freddo Posted January 16, 2019 Share Posted January 16, 2019 8 hours ago, sparkyboy said: What i mean by easier cel is you just have to hook up the green connectors and count the blinks. You can't do that on obd2? Yes you can if you keep the connectors. I can read the codes on my sister’s Gen3 Liberty using the plugs. Nothing has changed in that department for the early OBDII, later gear may have changed but I’m not familiar with that. I’ve also been told on good authority (auto sparky mate) that OBDII Gen2 stuff is much easier to cut down than the OBDI Gen1 looms. Cheers Bennie 1 Link to comment Share on other sites More sharing options...
sparkyboy Posted January 16, 2019 Share Posted January 16, 2019 (edited) Hmmm, mine must be different or hooked up wrong. All i ever get is a steady blinking light when i hook the green connectors together? But i did get a bunch of codes with a scanner that i cleared out and all seems good in the flat world. I seem to recall my 95 and 96 doing the same thing with the cel. Edited January 16, 2019 by sparkyboy Link to comment Share on other sites More sharing options...
el_freddo Posted January 17, 2019 Share Posted January 17, 2019 Steady blinking indicates the market the ecu is from, and there’s are no stored codes. Mid codes are stored, these would be flashed instead of the market designation. Cheers Bennie 1 Link to comment Share on other sites More sharing options...
photoghog Posted April 22, 2020 Share Posted April 22, 2020 Sorry to resurrect this thread but I'm planning to do the same conversion to my 77 westy. The only 95 Legacys are 12+ hours from me and I do have a 93 2.2 that is near me on the cheap, I had planned to go that route. I've seen OBDi to OBDii adaptors on the cheap but have never found anyone that has direct experience on whether they work. Has anyone on here? This is what I am talking about: https://www.chipyourcar.com/product/subaru-obd1-to-obd2-adapter/ TIA Link to comment Share on other sites More sharing options...
3Pin Posted April 24, 2020 Share Posted April 24, 2020 I am in the process of doing a 95 2.2 into a 1970 bug. I bought two 95's so I could get some duplicate parts as they were both cheap cars. Sold one engine to a friend who really needed it, but kept all the rest. In about a month the vw comes out and the fresh 2.2 with shortened oil pan and reverse throttle goes in. looks like a guy on car-parts.com not far form you has a 95 engine and maybe the whole car yet. good luck!! 1995 Engine Assembly Subaru Legacy (2.2L, VIN 6, 6th digit)-0MI 0 A B79 $Call John Meyer Truck and Foreign Salvage, Inc. USA-MO(Joplin) Request_Quote 417-781-8300 / 800-662-7963 Request_Insurance_Quote 48 Link to comment Share on other sites More sharing options...
STEVEN BORNHORST Posted September 25, 2021 Share Posted September 25, 2021 (edited) I have an 1995 Legacy 2.2 ECU wiring diagram if it will help I will send it to you let me know sbornhorst1@comcast.net All so has the vanagon wiring hookups. Edited September 25, 2021 by STEVEN BORNHORST Link to comment Share on other sites More sharing options...
