John Stonier Posted April 12, 2019 Share Posted April 12, 2019 I am trying to reactivate the AC on a 1991 VW Vanagon Camper with a EJ22 engine conversion I believe from a around 1991 Legacy. The engine was fitted without the AC compressor assembly (bracket belt tensioner etc). I have not been able to find an assembly diagram with the relevant Subaru parts numbers.Can anyone help? Many thanks ! Link to comment Share on other sites More sharing options...
jonathan909 Posted April 12, 2019 Share Posted April 12, 2019 Yikes - I was in a similar situation with my '98 Legacy wagon - somewhere along the way the AC (compressor and condenser) were removed and the PO didn't bother replacing them. When I decided to take care of that last summer I just had to dig around the wrecking yard to find the compressor+brackets that fit, as there are abundant combinations that don't. Link to comment Share on other sites More sharing options...
el_freddo Posted April 12, 2019 Share Posted April 12, 2019 Junk yard will be your friend. My understanding is that the barckets will all fit an EJ22 If from an EJ22 of the same phase. Since you’re retro fitting the AC compressor grab one that’s bolted to the bracket, that way you know the compressor fits what you need. Then photograph the VIN plate for future reference. Have your custom hoses made up, wire in the compressor clutch to your AC system’s compressor control wire; lastly, wire in the pressure switch in series with the one in the factory loom. Cheers Bennie Link to comment Share on other sites More sharing options...
jonathan909 Posted April 12, 2019 Share Posted April 12, 2019 Presumably your alternator is mounted as usual - on the AC compressor bracket. So that's your starting point - you bolt through the compressor into the four threaded holes in that bracket, so you need to find a compressor with that hole spacing. Link to comment Share on other sites More sharing options...
matt167 Posted April 13, 2019 Share Posted April 13, 2019 do yourself a favor, and retrofit one from an R134A car which will be all 1996 and newer. I would grab the entire top bracket from the engine to get one that will bolt up. Then you can use R134A coolant. Since your retrofitting stuff anyway, you can change the coolant specific parts Link to comment Share on other sites More sharing options...
sparkyboy Posted April 17, 2019 Share Posted April 17, 2019 Factory AC bracket im pretty sure I have one you can have for shipping and the cost of six decent beers. Let me find it but they are at junkyard here for $5. Link to comment Share on other sites More sharing options...
John Stonier Posted April 18, 2019 Author Share Posted April 18, 2019 Hi Sparkyboy. That wold be really great. I have sent you a separate message Link to comment Share on other sites More sharing options...
jonathan909 Posted April 18, 2019 Share Posted April 18, 2019 Why don't you post a picture of the alternator (and AC compressor) bracket on your engine? No point in getting another from the US if it's the same as you have now. Link to comment Share on other sites More sharing options...

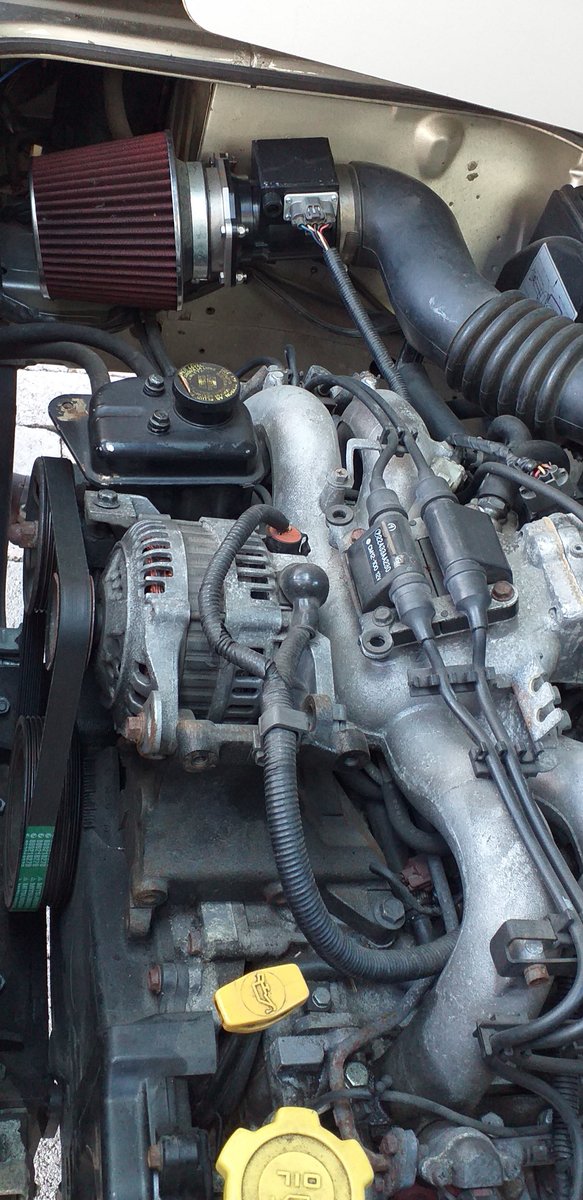

John Stonier Posted April 18, 2019 Author Share Posted April 18, 2019 Yes good idea. here it is Link to comment Share on other sites More sharing options...
nvu Posted April 18, 2019 Share Posted April 18, 2019 (edited) looks like you already have the bracket, oops it's missing a bottom bracket for the compressor. for the tensioner, you could skip it all together and get a stretch belt directly from the crank to the compressor. here's a diagram, it's 73611 https://parts.subaru.com/a/Subaru_1998_Impreza-22L-MT-4WD-Outback-Wagon/_54104_6022881/COMPRESSOR/G10-732-02.html Edited April 18, 2019 by nvu Link to comment Share on other sites More sharing options...
jonathan909 Posted April 18, 2019 Share Posted April 18, 2019 (edited) Perfect. See, you don't need a bracket - the one you have is just fine. Those four threaded holes? That's where the AC compressor goes. And it's hard to tell from this angle, but there should also be two threaded holes on the front of that casting that the tensioner bolts into. Then there's just one more piece (and I don't have an EJ22 older than '95, so yours may vary), a little casting that the bottom two AC compressor bolts pass through and which in turn bolts onto the top of the head to stablize the whole assembly. Edited April 19, 2019 by jonathan909 Link to comment Share on other sites More sharing options...
Numbchux Posted April 18, 2019 Share Posted April 18, 2019 On 4/13/2019 at 3:06 PM, matt167 said: do yourself a favor, and retrofit one from an R134A car which will be all 1996 and newer. I would grab the entire top bracket from the engine to get one that will bolt up. Then you can use R134A coolant. Since your retrofitting stuff anyway, you can change the coolant specific parts This! If you've got a You Pull it style junkyard nearby, find one with a late '90s/early '00s Subaru. Any 4-cylinder would work. Tensioner bracket bolts to the Compressor/alternator bracket, and there's another little bracket over the head. Just grab the whole assembly, compressor, lines, etc. It'll be more efficient with the r134a than the compressor that matches your engine. Then take a picture of the VIN if you need parts in the future. Link to comment Share on other sites More sharing options...
el_freddo Posted April 18, 2019 Share Posted April 18, 2019 Whoa, too many chiefs in here - what’s been said so far: - not all compressors are compatible with all brackets - get a bracket with the compressor so you know you’ve got a complete unit that works together was said several times - you don’t need a bracket, you’ve already got one is the latest. I hope we haven’t confused John! Best thing you can do is spend a day at a parts yard, find a ‘91 model, remove its compressor, go find another later model with the r136a gas (as previously mentioned by matt167) and pull its compressor. Go back to the 91 and see if the compressor bolts in as you want it to. If it does, just buy the compressor, hoses and wiring. If not, go back to the donor (which you’ll have to anyway to grab the VIN) and get the bracket too. You will need a stubby 12mm spanner for the lower bolts, particularly the one closest to the intake manifold. It’s a real bastard to undo if you don’t want to remove the intake manifold. You’ll also need a 14mm socket/spanner to remove the bracket and the small one beside the intake on the lhs of the compressor. In my mind, that’s how I’d do it for what I believe your needs are Cheers Bennie Link to comment Share on other sites More sharing options...
jonathan909 Posted April 19, 2019 Share Posted April 19, 2019 Right, but... before you make that trip, measure the bolt spacing on that bracket and make sure you find a compressor that matches it. Link to comment Share on other sites More sharing options...
John Stonier Posted April 19, 2019 Author Share Posted April 19, 2019 Thanks to everyone for your comments and help. My engine is from a 1991 Legacy. Finding , especially the older Subuarus, in breakage yards is no so easy here in Austria. That's the reason i wanted the exact OEM parts numbers. Thanks member "nvu" !! What was the latest Subaru in production with the EJ22 engine and imported here to Europe, Legacy 99, Impreza 97 ??? it will be easier to find a late model that's being broken for parts. I can get a new replacement R134 compressor for around 200 euros..... If it fits the alternator bracket i have. Then I need the lower bracket and the belt tensioner components, probably from a yard john Link to comment Share on other sites More sharing options...
el_freddo Posted April 19, 2019 Share Posted April 19, 2019 Ah, I didn’t realise you were in Austria! Understandable that it’s hard to find a Gen1 in the yards then. They’re becoming less frequent here in Vic, Australia. The L series are very hard to come by and Brumby/MV/MY wagons and sedans are basically extinct in the yards. Plenty of Brumby/MVs still kicking around out there. All the best with it! Cheers Bennie Link to comment Share on other sites More sharing options...
