Sohc heads on a wrx engine


aselby
 Share

Recommended Posts

For starters I’ll say I did search and didn’t find any definitive answers, I found similar questions and the only answers were go search. Back story: I have a 2004 Saab 92-x turbo with a bad engine (I will call it a wrx from now on). I plan on putting an engine in the car for a few months and then transplanting it into my 1966 vw bug. The Saab will just be used to dial in the car and make sure it runs good. I have an ej255 short block and I want to put sohc  heads in it and run it with the stock wrx harness and pcm. Ideally I’d like to use 251 heads because I have a rebuilt set. I know the heads will physically fit and the turbo will have some clearance issues that can be worked out. I know I will need to plumb oil and coolant to the turbo. What I’m not sure about is ignition coils and camshaft gears. The wrx uses Coil on plugs and the 251/253 heads use conventional wires. Does subaru make a coil on plug coil from a later model sohc engine that I can fit on a 251 head and be compatible with the wrx harness? I can tig a bung to bolt down the coil if needed. Will the camshaft sensor read the sohc cam gear properly? Also if anyone has done a similar conversion I’d love some feedback.

Link to comment
Share on other sites

Won't run on stock management.  IIRC,  Cam sensors are all different setup.  Turbo EJ255 is AVCS, with sensors at the back of each intake Cam, not on the gear like EJ251/3 setup.

And also the EJ255 intake won't bolt onto the SOHC heads.  Maybe with an adpater/spacer?  Or you could try to swap wiring over to a 251/3 manifold?

The DOHC heads really aren't much larger, especially width wise........Why not just run a full EJ255 rather than some hybrid?

Link to comment
Share on other sites

The short block is a 255, the heads would be 251, the pcm harness and manifold are stock 205 from an 05 wrx. No avcs to deal with. The dohc in my bug means extensive body modifications. Do you know of the cam gears will work or a cop that will fit?

Edited by aselby
Link to comment
Share on other sites

The crucial question (which I do not know the answer to), is whether the EJ205 ECU can read the EJ251 cam sensor. If you have them, take a look at that sprocket and compare the tone wheels.



The spark plug tubes in the later EJ253s (which had COP) are deeper than the older 251/253s. So no, those coils are not a direct fit. But the extra length on the boot could probably be dealt with with some sort of spacer/adapter/mounting bracket.

Link to comment
Share on other sites

As I think about it, I might have it backwards. I think we were trying to use COP heads on a non-COP car, and the tubes on the COP heads were shorter, as the regular plug wires didn't reach the plugs, and the older valve covers didn't seal on the newer tubes (I don't remember what was different that required the use of the older valve covers...).

So unless you can find a longer boot for the stock plugs. But since the valve covers are different, you'll probably be making custom mounts anyway, so a different coil might be a better option anyway. The Audi R8 Coils (used on many other things, but that's the easy way to look them up) are powerful and reasonably priced, I see those being used a lot on 1UZ COP conversions. Otherwise it might make more sense to use 4 standalone coils (Chevy LS style), with a short plug wire. Lots of options.

Link to comment
Share on other sites

You'll need to use the 05+ sohc ej25 cam and crank timing gears to get the correct pattern, the 205 intake manifold will bolt to phase 2 sohc heads. You may be better off going with GM LS coil near plug setup and doing custom wires. You'd need to adjust the ignition dwell settings in the 205 ecu to keep from frying coils though.

Edited by 86BRATMAN
  • Like 1
Link to comment
Share on other sites

Great information thank you. You mentioned the camshaft and crankshaft gears need to be from a 05+ sohc engine. Do you know if the crankshaft sprocket from the stock wrx engine is the same. I’d like to keep the coil on plug if possible. Does anyone have a listing of the different lengths of boots that will fit on the coils? Thanks again for all the help

  • Like 1
Link to comment
Share on other sites

  • 6 months later...

No kidding?! Tell me what you did...

I measured and measured and I think I can use an ej222 cam gear (same as ej251 from later Legacy) and 2010 Outback coils-on-plug, with custom brackets. I think we may be in a very exclusive club...

Where are you? I’m in Albuquerque

Link to comment
Share on other sites

  • 2 weeks later...

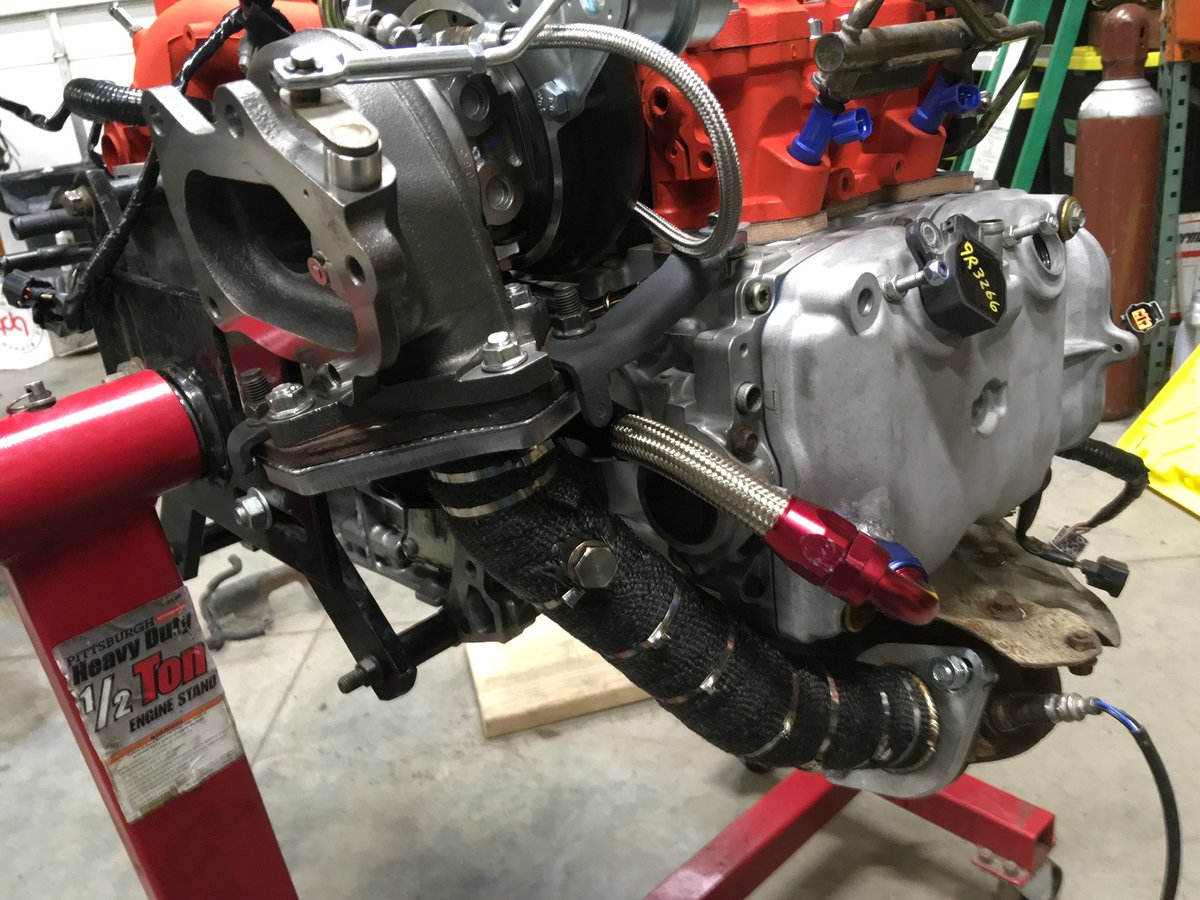

You will need a 05+ cam gear for the drivers side cam gear to get the correct pattern. The coils from a 10+ outback will work but you need to switch the wiring orientation in the plugs. You don’t need brackets just a bolt to secure them. I had to space the turbo up 10mm to get everything to fit.


  • Like 2
Link to comment
Share on other sites

That’s awesome. Looks like you’ve got 10mm phenolic spacers too; they keep the manifold at roughly the same plane...

Good to know about bumping up the turbo- that’s easy. Thank you. Let me know how it runs!

Link to comment
Share on other sites

  • 2 months later...
  • 3 years later...

Ok since there’s been zero contact or update from Micah or aselby I went ahead and applied their build application/idea to an EJ205 setup. I’m not done yet as I’ve got an NA EJ202 block and matching heads as the test mule running all the turbo gear from a 2002 SF GT forester - which I’m not sure if this model was sold in the US. It’s basically the GD WRX setup but with a TF035 turbo.

I’ve got it running which is a great feeling but I also have a misfire on cylinder 1 and a check engine light I can’t read (I need to splice in the diagnostics plug as I got a bit trigger happy with the wire cutters). On cylinder 1!I’ve checked the coil pack, swapped for a good running one on another cylinder, same for the spark plug but the issue remains with cylinder 1. Wiring continuity for the coil pack and injector checks out from either unit to the ECU. Valve clearances are good/on point.

Compression on each cylinder, engine cold is:
Cyl 1 = 185psi
Cyl 2 = 200psi
Cyl 3 = 210psi
Cyl 4 = 205psi

It seems the HG issue is on cylinder 1 but that compression doesn’t seem poor enough to induce a misfiring cylinder to the point that disconnecting the coil’s trigger doesn’t change the engine’s behaviour at all

What I haven’t done is swapped the injector to another cylinder to see if the issue moves with the injector, that’s next to do. I can hear the injector clicking using a piece of dowel held against it when the engine is running. Disconnecting the coil plug doesn’t change the idle at all, or how it revs.

Does anyone have any insights as to what the issue might be? I’ve cut down the loom with the only things not hooked up are the temp sensor for the deleted up pipe cat, the neutral switch and those random wires that go to dash switches such as the rear demister etc. I don’t have the fuel temp sensor in the fuel tank hooked up but haven’t heard of this being an issue before.

This wiring loom and ECU combo ran fine with the complete DOHC EJ205 still in the Forester before it was pulled out and I started playing with it all.

Cheers

Bennie
