Cormfra Posted February 11, 2020 Share Posted February 11, 2020 I have a no start I thinks it’s from my Ignition coil transistor but I’m not sure can someone tell me where I can buy one Link to comment Share on other sites More sharing options...
DaveT Posted February 11, 2020 Share Posted February 11, 2020 Try searching for ignitor? I am not sure if they are available. But, yes, you need one. The distributor signals go to the ECU, and it adjusts and sends them to the ignitor transistor. Link to comment Share on other sites More sharing options...
Cormfra Posted February 11, 2020 Author Share Posted February 11, 2020 Okay thank you Link to comment Share on other sites More sharing options...
Cormfra Posted February 11, 2020 Author Share Posted February 11, 2020 Still haven’t had any luck finding one. Link to comment Share on other sites More sharing options...
john in KY Posted February 11, 2020 Share Posted February 11, 2020 I doubt that part is the problem. No spark would have me checking for a broken timing belt, a loose rotor, and insuring the coil bracket was tight against the car body as it acts as a ground for the suspect part. Would also replace the coil. 1 Link to comment Share on other sites More sharing options...
Cormfra Posted February 11, 2020 Author Share Posted February 11, 2020 I have a new coil new disrupters, router. I haven’t checked then theming belt buts it’s fairly new so I don’t think it’s that but. I will make sure the coil bracket is against the car I still also need transistor because I broke it Link to comment Share on other sites More sharing options...
john in KY Posted February 11, 2020 Share Posted February 11, 2020 Post in the parts wanted section for a used one. Link to comment Share on other sites More sharing options...
Cormfra Posted February 11, 2020 Author Share Posted February 11, 2020 Okay thank you Link to comment Share on other sites More sharing options...
loyalematt Posted February 12, 2020 Share Posted February 12, 2020 (edited) 22 hours ago, Cormfra said: I have a no start I thinks it’s from my Ignition coil transistor but I’m not sure can someone tell me where I can buy one What exactly are you referring to as the ignition coil transistor? Within the distributor? If it's what I think you are referring to, check this out. Edited February 12, 2020 by loyalematt Link to comment Share on other sites More sharing options...
Cormfra Posted February 13, 2020 Author Share Posted February 13, 2020 Its a little small black puck under the bracket for the ignition coil Link to comment Share on other sites More sharing options...
Rampage Posted February 13, 2020 Share Posted February 13, 2020 (edited) No, you cannot bypass it. The transistor in the control unit will not handle the current of the coil. How many wires on it and is it grounded to the coil bracket? To act as a transistor power switch for the coil it would have a signal input, a ground and an output to the coil. What it does is, take the high current load of the coil away from the SPFI Control Unit, or ECU or ECM in later models. It is the same process as produced by using a relay. A small current can control a large current. Transistors can switch on and off really fast like millions of times per second. I was looking at wiring diagrams and you may be able to wire in a later model Igniter in place of the Power Transistor. The Igniter is basically the same thing, only it is built to run two coils in a pack instead of one coil. I looked at the 95 and 97 Legacy because we have them. Remove one of the two wires on the coil terminals. With the key on, there should be battery voltage on one of the two wires. The one that does not show voltage goes to the Power Transistor. Remember which one that is. To test the coil hook up a spark plug wire to the coil and a spark plug. Ground the spark plug body somewhere on the engine. Turn the key on and take a wire grounded on one end and tap the other end on the coil terminal that goes to the Transistor. Do not hold it on the terminal, just tap it. There should be a spark when you remove the wire from the terminal. When the wire touches the terminal the coil generates a magnetic field. When the wire is removed that magnetic field collapses and produces a spark. The input wire to the Power Transistor should show a low voltage pulse on a volt meter when cranking the engine. What I don't know is the impedance (electrical resistance at certain frequencies) of the old coil compared to the newer coils. There will be a capacitor (or condenser) either external or built into the Power Transistor. That capacitor is used to complete the coil circuit to ground when the transistor switches off and the magnetic field collapses and produces current in the high voltage winding of the ignition coil. If you decide to try wiring in the Igniter, the following is how to wire it. Go to a yard and get the Igniter and plug. Cut the wire harness long, so you have wires to work with. You can trim off the wires later. It is mounted at the center of the firewall on the bracket for the support that goes to the top of the bellhousing. Remove the Power Transistor. On the Igniter connector there are 6 terminals but only 5 Pins are used. Pin 3 has a black wire, so you can easily decode the other pins. Wire colors. First letter is wire color. Second letter is the stripe color. Black, Green, Lavender, Red, Yellow, Violet. Pin # and Wire color. Pins 1 YL & 2 YV - connect the wires together and they go to the signal Input wire that originally went to the Power Transistor. Pins 5 L & 6 RG - connect the wires together and they go to the coil terminal. Pin 3 B - goes to a GOOD ground. I wish I had something to try this on, but I don't. Connecting the wires together hooks the two transistors in parallel so the coil current is divided between them. What I do not know is what the combined input load will put on the computer signal. It depends on the resistor circuit for the transistors built into the Igniter. We may have to break it down to just one circuit. Let us know if you try it and how it works out. Edited February 13, 2020 by Rampage 1 Link to comment Share on other sites More sharing options...
naru2 Posted February 13, 2020 Share Posted February 13, 2020 Results sorted by PRICE (Click on heading to re-sort) Click back to modify your previous choice. Most prices do not include extended warranties or shipping. 1990 Subaru Loyale Coil/Igniter Click Here to see All Interchange Choices Click Here to see Non-Interchange Choices Year Part Model Description Part Grade Stock# US Price Dealer Info 1994 Ignition Coil Subaru Loyale A K05748 $35 Gerry's Foreign Auto Parts USA-WA(Kittitas) Request_Quote 1-800-848-5578 Request_Insurance_Quote 1992 Ignition Coil Subaru Loyale 1.8L,CK-OK,4/18,ON FENDER A 052E $35 Whiteys Wrecking USA-WA(Spokane) Request_Quote 1-800-735-2376 Request_Insurance_Quote 1991 Ignition Coil Subaru Loyale 1.8,5SPD N10258 $25 All West Coast Auto Wrecking USA-WA(Shelton) Request_Quote 1-800-720-4599 Request_Insurance_Quote 1991 Ignition Coil Subaru Loyale 1.8,5SP N8843 $25 All West Coast Auto Wrecking USA-WA(Shelton) Request_Quote 1-800-720-4599 Request_Insurance_Quote 1988 Ignition Coil Subaru XT A 6333 $25 97 Auto Wrecking Shull's Towing USA-WA(Brewster) E-mail 1-800-822-5761 1992 Ignition Coil Subaru Loyale ON SHELF GOOD UNIT A 230903 $25 Black Diamond Auto Wrecking USA-WA(Black-Diamond) Request_Quote 1-877-809-8809 Request_Insurance_Quote 1993 Ignition Coil Subaru Loyale 150348 $Call Nisqually Auto Wrecking USA-WA(Lacey) Request_Quote 360-456-6222 Request_Insurance_Quote Year Part Model Description Part Grade Stock# US Price Dealer Info Link to comment Share on other sites More sharing options...
naru2 Posted February 13, 2020 Share Posted February 13, 2020 (edited) A lot simpler just to get the correct part. Plenty not too far away. I managed to destroy one too. Edited February 13, 2020 by naru2 Link to comment Share on other sites More sharing options...
Cormfra Posted February 17, 2020 Author Share Posted February 17, 2020 Okay thank you so much I'll let you know when I try Link to comment Share on other sites More sharing options...
Ionstorm66 Posted February 19, 2020 Share Posted February 19, 2020 If you need one, I pulled one off a 1992 Loyale yesterday at the pic and pull for $12. Got the harness and bracket with it. Link to comment Share on other sites More sharing options...
Cormfra Posted February 20, 2020 Author Share Posted February 20, 2020 I got on at pick in pull just the other day thank you tho Link to comment Share on other sites More sharing options...
Cormfra Posted February 20, 2020 Author Share Posted February 20, 2020 Okay so I got the ig bracket in there with the transistor can someone tell me what everything goes in too I will send a few pictures in a bit Link to comment Share on other sites More sharing options...
Cormfra Posted February 20, 2020 Author Share Posted February 20, 2020 Link to comment Share on other sites More sharing options...
Cormfra Posted February 20, 2020 Author Share Posted February 20, 2020 So those two go to the ig coil but Which one is +&- and what about those other two plugs one goes to the transistor but what about the other one Link to comment Share on other sites More sharing options...
Rampage Posted February 20, 2020 Share Posted February 20, 2020 (edited) The two eyelets for the coil. When you turn the key ON, one of them will go to 12v. That one goes to the coil positive + and the other one is coil negative. Don't know about the other one. Edited February 20, 2020 by Rampage Link to comment Share on other sites More sharing options...
Cormfra Posted February 20, 2020 Author Share Posted February 20, 2020 Yeah I got that but which ones which Link to comment Share on other sites More sharing options...

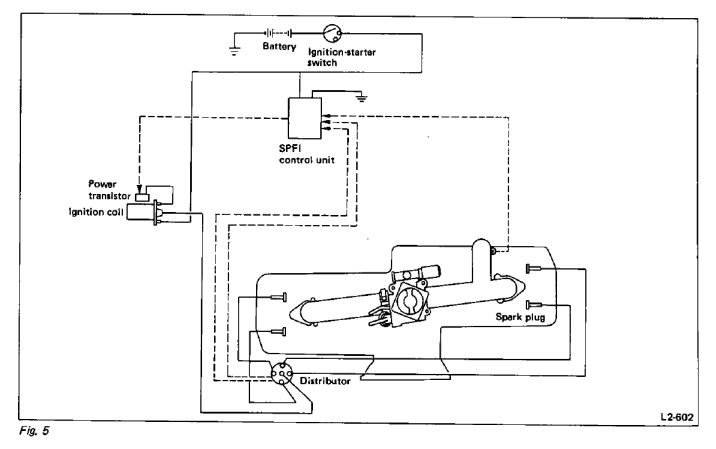

Rampage Posted February 20, 2020 Share Posted February 20, 2020 All I have to go by is this diagram. Link to comment Share on other sites More sharing options...
Cormfra Posted February 22, 2020 Author Share Posted February 22, 2020 See here I don’t understand what’s ground and what’s not is the ignition start witch that goes the the coil is that positive or negative and what about for the one thst goes to the transistor Link to comment Share on other sites More sharing options...
Rampage Posted February 22, 2020 Share Posted February 22, 2020 When you turn the ignition switch key to ON, one of the two eyelets will show 12 volts and that one goes to the coil positive terminal. The other eyelet goes to the coil negative terminal. That wire actually goes to the transistor. The transistor should be grounded through the coil bracket. The third connection for the transistor is the wire that comes from the SPFI module that carries the pulses to make the transistor switch on and off to produce spark from the coil. 1 Link to comment Share on other sites More sharing options...
Cormfra Posted February 23, 2020 Author Share Posted February 23, 2020 Okay so now both eyelets are reading 12 ish. But that when it’s on the coil. They might be on the opposite way but I’m not sure Link to comment Share on other sites More sharing options...
