idosubaru Posted September 9, 2007 Share Posted September 9, 2007 Can anyone post the TCU inputs for 1995, or 1996 Legacy FWD or AWD Automatic transmissions? I believe it's only two pages in the FSM. (page 146 in the first generation legacy FSM) Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 9, 2007 Share Posted September 9, 2007 just out of couriosity, which engine and what's the trans part number? 2.5 and TZ102Z2ACA ? Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 9, 2007 Author Share Posted September 9, 2007 2.5 and TZ102Z2ACA ? close - 2.5 and TZ102Z2AAA - last three are different than you said - AAA instead of ACA. this is for the currrent vehicle, the AWD. don't know anything about the parts trans yet....maybe the wiring diagram would tell me which is a better fit, but i'd imagine they'd make all the FWD auto trans inputs the same. Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 24, 2007 Author Share Posted September 24, 2007 bump for massive editing: Can anyone post the TCU inputs for 1995, or 1996 Legacy FWD or AWD Automatic transmissions? I believe it's only two pages in the FSM. (page 146 in the first generation legacy FSM) Quote Link to comment Share on other sites More sharing options...

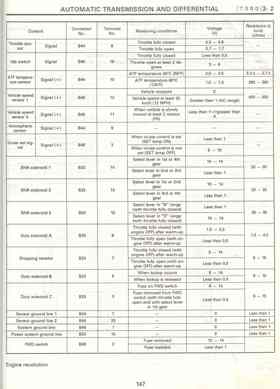

porcupine73 Posted September 24, 2007 Share Posted September 24, 2007 Not sure if these are what you're looking for, but they are for a 1996 Legacy 2.2L: The images are kind of big so you might have to save them and open them in an image editor/viewer to zoom in. Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 24, 2007 Share Posted September 24, 2007 this is probably too little too late, but if you removed the clutch plates from the AWD transfer clutch, wouldn't that make it FWD. of course that doesn't do anything about swapping out a bad trans. Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 24, 2007 Author Share Posted September 24, 2007 great, thanks porcupine! i was looking for the list of input/outputs of the TCU pins like the pic i have posted here (1st gen stuff), but i think yours will have that info in it as well. and john, it's not too late i haven't started yet. still debating auto verses manual. think i'm going auto for now and i can do manual down the road. i believe you're correct on the FWD/AWD being nearly identical and i think you can frankenstein it like that. problem is the front diff is toast. which leads to the option of running rear wheel drive but that's not a good option for me. thanks! Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 24, 2007 Author Share Posted September 24, 2007 great info. now i'm after 1995 FWD TCU info to compare to this 1996. thanks porcupine, that's exactly what i needed! i may take what you sent me to the dealer and see if they'll let me look at their 1995 page. Quote Link to comment Share on other sites More sharing options...
jamal Posted September 24, 2007 Share Posted September 24, 2007 I can send you that part of the 1995 fsm when I get home, which won't be until pretty late tonight. Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 24, 2007 Share Posted September 24, 2007 problem is the front diff is toast. which leads to the option of running rear wheel drive but that's not a good option for me. thanks! if you have a bad 2.2L trans sitting around , just swap the front diff. it shouln't take but a couple of hours once the trans is out and i would think you'd have have one considereing how many legacys you go thru. just a thought. Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 24, 2007 Author Share Posted September 24, 2007 i would think you'd have have one considereing how many legacys you go thru. HEY! that was funny. i only have manual EJ trans, no auto's and i want to convert it from AWD to FWD. jamal - i'll definitely take that 95 info, thanks a ton. no rush on it, so don't sweat it. 95 trans are all over the place, 96 are harder to find and more expensive and further away. Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 25, 2007 Share Posted September 25, 2007 HEY! that was funny. i only have manual EJ trans, no auto's and i want to convert it from AWD to FWD. jamal - i'll definitely take that 95 info, thanks a ton. no rush on it, so don't sweat it. 95 trans are all over the place, 96 are harder to find and more expensive and further away. i put a 96 wagon 4eat AWD into a 95 sedan with no problems. i don't know the real difference between the model years, but the operational difference is none. i bet the reverse swap will work as well. i saw some cheap (250 -350) FWD trannys on car-part.com, how far is henderson auto in scottdale, pa, 3 @ $150 or staunton, va, $275 ords auto parts. good luck. Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 25, 2007 Author Share Posted September 25, 2007 awesome! you've done a 95-96 interchange? fantastic, that's exactly what i needed to know! so i'm getting that trans, one only has 80k - 90k on it. i had been plugging away on there and had found those 95's in scottdale which is really close, that's why i was wanting to know if it would work. to go with a 96 would have been much more expensive and much further away too. thanks! Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 25, 2007 Share Posted September 25, 2007 awesome! you've done a 95-96 interchange? fantastic, that's exactly what i needed to know! so i'm getting that trans, one only has 80k - 90k on it. i had been plugging away on there and had found those 95's in scottdale which is really close, that's why i was wanting to know if it would work. to go with a 96 would have been much more expensive and much further away too. thanks! TCU note: after i swapped the 96 trans into the 95 (it runs fine) i then swapped the TCU to see what difference that made. it was not happy. the TCUs are apparently programmed for the car, size and weight, and the shift characteristics, GT vs outback. so i'd stick with the one that came in the car unless it throws a code because of the FWD. Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 25, 2007 Share Posted September 25, 2007 final drive note: i think i read somewhere the the final drive in a FWD trans was 3.7. this must be for a manual trans since it's a pretty long way from the 2.2L - 4.11 or the 2.5L - 4.44 in other autos. i have also come the the conclusion the the final drive ratio, although different between the 2.2 and the 2.5 engines, it is really based on the wheel circumference. there is no logical reason why a more powerful 2.5L engine needs a more powerful final drive ratio. but in the early days, the cars that came with the 2.5L engine also came with larger wheels. larger wheels would be a reason for a more powerful final drive ratio. so you may lose some power and gain some economy with this swap. let us know if you notice any change. Quote Link to comment Share on other sites More sharing options...
idosubaru Posted September 25, 2007 Author Share Posted September 25, 2007 i'll be going from a 2.5 trans to a 2.2 trans, so yes i'll see a final drive difference. im' wondering if the gear ratio changes means my speedometer will read incorrectly or if that happens inside the trans? Quote Link to comment Share on other sites More sharing options...
johnceggleston Posted September 25, 2007 Share Posted September 25, 2007 major re-write edit: the gear that drives the speed sensor rotates with ring gear. this is after the gear reduction, 4.11:1. the speedometer doesn't care how fast the trans is turning, just how fast the ring gear is turning. assuming the ECU just counts the wheel rotations to get a mile, you'll be ok. this assume that the speedo drive gear on the 4.11 diff is the same as the drive gear on the 4.44 diff. http://smg.photobucket.com/albums/v204/All_talk/Subaru/4EAT/?action=view¤t=Image019.jpg Quote Link to comment Share on other sites More sharing options...
